| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,500 pcs
|
23500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

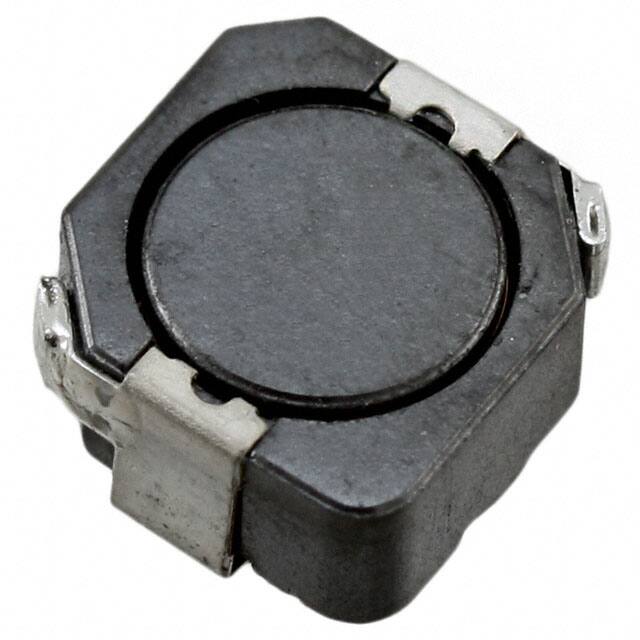

The Eaton DR1050-102-R is a fixed inductor with a nominal inductance of 1 mH and a tolerance of ±30%. It is rated for a DC current of 430 mA and has a maximum DC resistance of 1.95 ohms. The component uses a ferrite drum core with wirewound construction and is shielded to reduce electromagnetic interference.
This surface mount inductor comes in a nonstandard package with dimensions of 10.50 mm by 10.30 mm and a height of 5.00 mm. It operates over a temperature range of -40°C to 125°C, making it suitable for a variety of industrial and automotive environments.
Typical applications include power supply filtering, DC-DC converter circuits, and other inductive energy storage and filtering functions. The shielded design helps contain magnetic fields, which is beneficial in densely packed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
| 10+ | $0.64 | $0.64 |
| 100+ | $0.52 | $0.52 |
| 500+ | $0.48 | $0.48 |
| 1,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 mH with ±30% tolerance.
430 mA.
1.95 ohms maximum.
-40°C to 125°C.
Surface mount, nonstandard package, measuring 10.50 mm x 10.30 mm x 5.00 mm.
Yes, it is shielded.
