| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
122 pcs
|
122 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

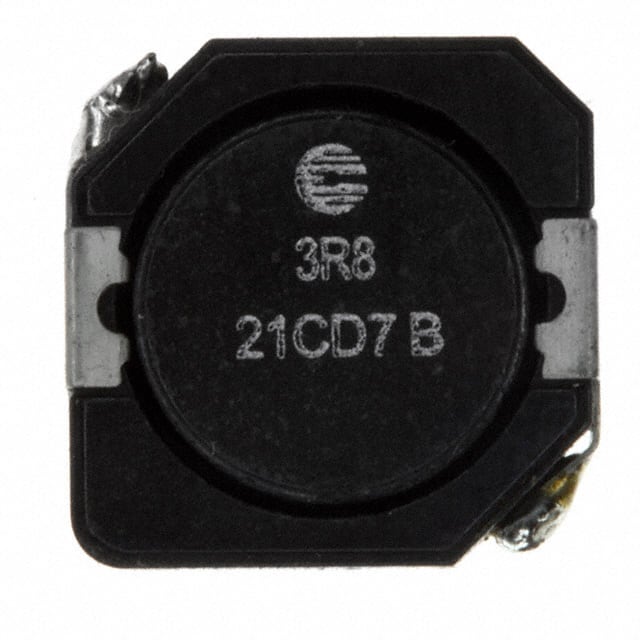

The DR1040-3R8-R is a shielded wirewound drum core inductor from Eaton - Electronics Division. It offers an inductance of 3.8 µH with a tolerance of ±30% and a rated current of 5.5 A, while the saturation current reaches 6.4 A. The low DC resistance of 13 mOhm max minimizes power losses, making it suitable for high-efficiency power conversion circuits.
The inductor features a ferrite core and is fully shielded to reduce electromagnetic interference. It is constructed in a surface-mount package with dimensions of 10.50 mm x 10.30 mm x 4.00 mm, and operates over a wide temperature range of -40°C to 125°C, enabling use in harsh environments.
Typical applications include DC-DC converters, power supplies, and voltage regulation modules where high current capability and low profile are required. The shielded design helps meet EMI compliance in compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.51 | $0.51 |
| 500+ | $0.43 | $0.43 |
| 850+ | $0.40 | $0.40 |
| 1,700+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 3.8 µH.
The rated current is 5.5 A, with a saturation current of 6.4 A.
The maximum DC resistance is 13 mOhm.
The package dimensions are 10.50 mm x 10.30 mm x 4.00 mm, surface mount, nonstandard.
Yes, it is a shielded inductor.
The operating temperature range is -40°C to 125°C.
The inductance tolerance is ±30%.
