| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

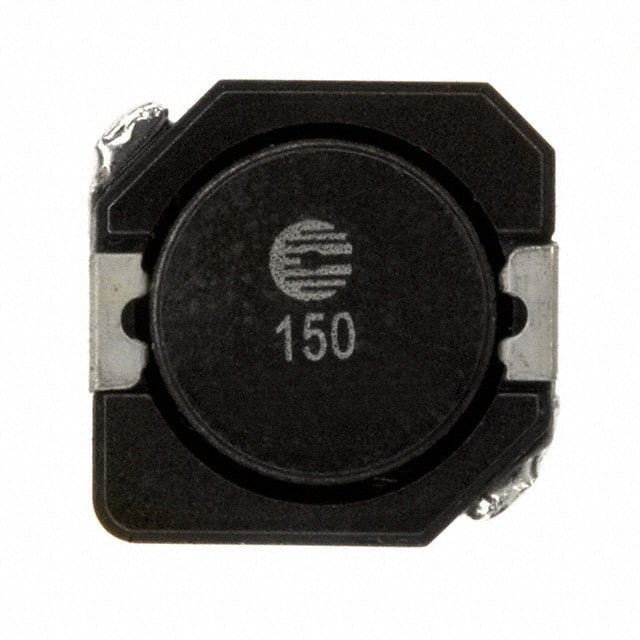

The DR1040-150-R is a fixed inductor manufactured by Eaton - Electronics Division. It features a drum core, wirewound construction with ferrite core material and is fully shielded. The inductor offers an inductance of 15 µH with a tolerance of ±30%. It is rated for a DC current of 3.1 A and has a saturation current of 3.6 A.
The DC resistance (DCR) is specified at 0.05 Ω maximum, ensuring low power loss in power supply and filtering applications. The component operates over a temperature range of -40°C to 125°C, suitable for industrial and automotive environments.
The inductor is designed for surface mount assembly with a nonstandard package size of 10.50mm x 10.30mm and a height of 4.00mm. It is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). This component is commonly used in DC-DC converters, power supplies, and EMI filtering circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.51 | $0.51 |
| 500+ | $0.45 | $0.45 |
| 850+ | $0.45 | $0.45 |
| 4,250+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 µH.
3.1 A DC.
0.05 Ω maximum.
Nonstandard surface mount package.
Yes, it is shielded.
-40°C to 125°C.
3.6 A.
