| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

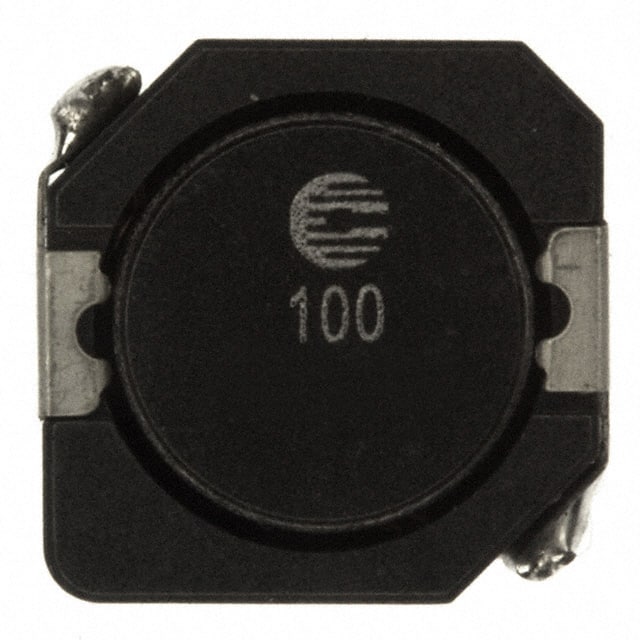

The Eaton DR1040-100-R is a fixed, shielded, wirewound inductor designed for surface mount applications. It offers a nominal inductance of 10 µH with a wide ±30% tolerance. The component is rated for a continuous current of 3.8 A and features a maximum DC resistance (DCR) of 35 mOhm, ensuring low power loss. The inductor is constructed with a ferrite drum core to provide stable inductance over a broad frequency range.
This shielded inductor is housed in a nonstandard surface-mount package measuring 10.50 mm x 10.30 mm with a height of 4.00 mm. It can operate over a temperature range of -40°C to 125°C. These characteristics make it suitable for power applications where electromagnetic interference (EMI) reduction is desired. The part is identified by the MPN DR1040-100-R and is produced by Eaton - Electronics Division.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.51 | $0.51 |
| 500+ | $0.43 | $0.43 |
| 850+ | $0.40 | $0.40 |
| 1,700+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 10 µH with a tolerance of ±30%.
The current rating is 3.8 A. The saturation current is 4.4 A.
Yes, the inductor is shielded.
The maximum DC resistance (DCR) is 35 mOhm.
The operating temperature range is -40°C to 125°C.
It is a surface mount device.
The inductor has a nonstandard case with dimensions 10.50 mm length, 10.30 mm width, and 4.00 mm height.
