| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

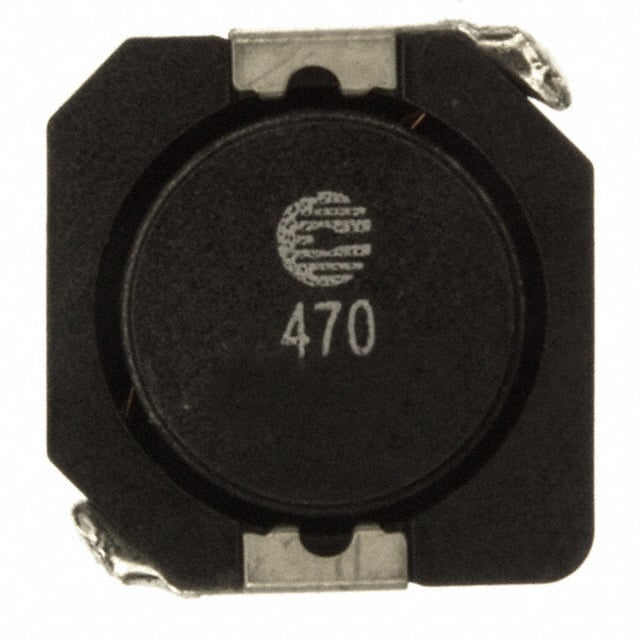

DR1030-470-R is a fixed inductor from Eaton offering 47 µH inductance with ±30% tolerance and a saturation current of 1.52 A. The device is rated for continuous current of 1.3 A and has a maximum DC resistance of 200 mOhm.
The inductor uses a ferrite core in a shielded wirewound drum construction, which helps reduce electromagnetic interference and is suitable for high-density power circuits. It is designed for surface mount assembly in a nonstandard package measuring 10.50 mm × 10.30 mm with a height of 3.00 mm. The component operates over a temperature range of -40°C to +125°C.
This inductor is appropriate for DC-DC converters, power supply filtering, and other energy storage applications where stable inductance and low losses are required. The shielded construction minimizes magnetic flux leakage, making it useful in noise-sensitive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.51 | $0.51 |
| 1,000+ | $0.44 | $0.44 |
| 2,000+ | $0.41 | $0.41 |
| 5,000+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47 µH.
The rated continuous current is 1.3 A.
The maximum DC resistance is 200 mOhm.
It uses a surface mount package measuring 10.50 mm × 10.30 mm with a height of 3.00 mm.
It operates from -40°C to +125°C.
The saturation current is 1.52 A.
Yes, the inductor is shielded.
