| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165 pcs
|
165 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

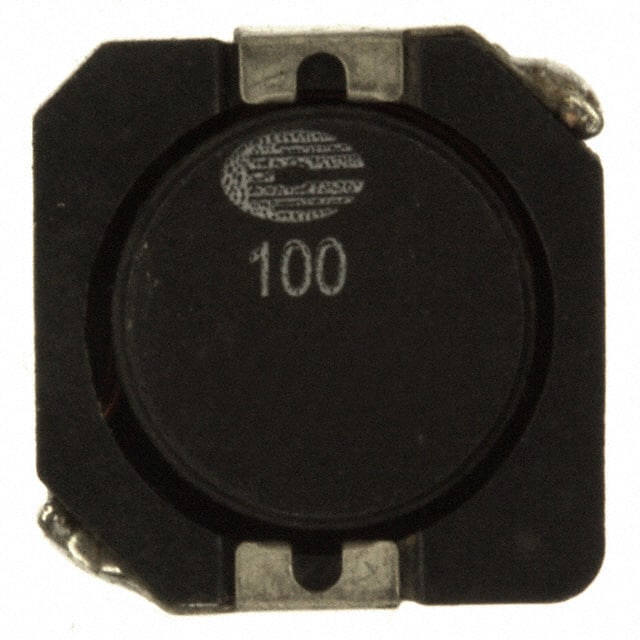

The DR1030-100-R is a fixed inductor from Eaton's Electronics Division. It features an inductance of 10µH with a tolerance of ±30%. The component is rated for a current of 2.8A and has a maximum DC resistance of 48mOhm. It is a shielded drum core wirewound inductor with a ferrite core, designed for surface mount applications. The operating temperature range is -40°C to 125°C. The package is nonstandard with dimensions 10.50mm x 10.30mm x 3.00mm. This inductor is suitable for power supply filtering, DC-DC converters, and other applications requiring low profile and high current handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.79 | $0.79 |
| 10+ | $0.65 | $0.65 |
| 100+ | $0.54 | $0.54 |
| 500+ | $0.50 | $0.50 |
| 1,000+ | $0.44 | $0.44 |
| 2,000+ | $0.41 | $0.41 |
| 5,000+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH.
2.8 A (thermal current).
48 mOhm maximum.
Nonstandard surface mount package.
-40°C to 125°C.
Yes, it is shielded.
Surface mount.
