| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 2015+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Characteristic Impedance (Nominal @ Common) | |
| Characteristic Impedance (Nominal @ High Band) | |
| Characteristic Impedance (Nominal @ Low Band) | |
| Dimensions | |
| Frequency Bands (Low | |
| Frequency Range (Nominal @ High Band) | |
| Frequency Range (Nominal @ Low Band) | |
| High Band Attenuation (min | |
| Insertion Loss (Maximum @ High Band @ 2400 to 2500 MHz (–40 to +85 °C) | |
| Insertion Loss (Maximum @ Low Band @ 1565 to 1585 MHz (–40 to +85 °C) | |
| Insertion Loss (Typical/Maximum @ High Band @ 2400 to 2500 MHz) | |
| Insertion Loss (Typical/Maximum @ Low Band @ 1565 to 1585 MHz) | |
| Low Band Attenuation (min | |
| Mounting Type | |
| Operating Temperature | |
| Power Handling | |
| Return Loss (Low Band | |
| Return Loss (Minimum/Typical @ Common @ 1565 to 1585 MHz) | |
| Return Loss (Minimum/Typical @ Common @ 2400 to 2500 MHz) | |
| Return Loss (Minimum/Typical @ High Band @ 2400 to 2500 MHz) | |
| Return Loss (Minimum/Typical @ Low Band @ 1565 to 1585 MHz) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| attenuation (Minimum/Typical @ High Band @ 1565 to 1585 MHz) | |
| attenuation (Minimum/Typical @ Low Band @ 2400 to 2500 MHz) |

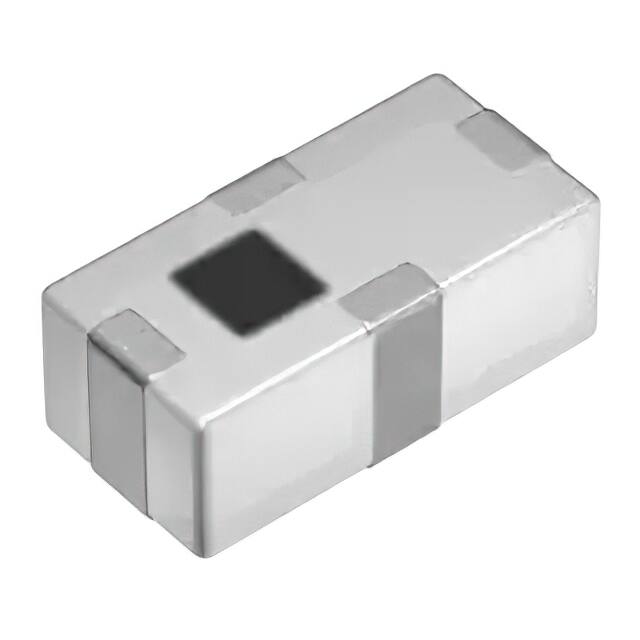

This TDK Corporation DPX162500DT-8114C1 is a multilayer diplexer, a type of RF component used to separate or combine signals at different frequencies. It is designed to operate in two distinct frequency bands: a low band from 1565 to 1585 MHz and a high band from 2400 to 2500 MHz.
The diplexer exhibits low insertion loss, with a typical value of 0.47 dB for the low band and 0.51 dB for the high band. It also provides significant attenuation, with a minimum of 20 dB specified for both bands when operating in the other band. The return loss is typically 27.8 dB for the low band and 17.1 dB for the high band, indicating good impedance matching.
With a power handling capability of up to 3W, this component is suitable for various RF applications. It is housed in a compact 0603 (1608 Metric) package and is designed for surface mount installation. The operating temperature range is from -40°C to +85°C, making it suitable for a wide range of environmental conditions.
The DPX162500DT-8114C1 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. Its characteristic impedance is 50 Ohms.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It covers frequency ranges of 1565 to 1585 MHz and 2400 to 2500 MHz.
The typical insertion loss is 0.47 dB for the low band and 0.51 dB for the high band.
The minimum return loss is 9.54 dB across the specified frequency bands.
It uses a 0603 (1608 Metric) surface mount package.
It can handle up to 3 W of power.
-40°C to +85°C.
