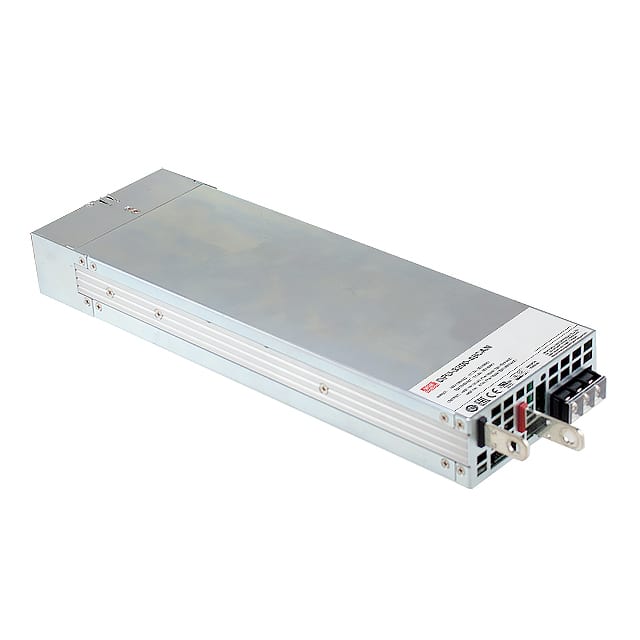

The Mean Well USA DPU-3200-48 is an enclosed AC DC converter designed for ITE (Commercial) applications. It provides a single 48V output at a rated current of 67A, delivering a total power of 3216W.
This power supply boasts a high efficiency of 94.5% and features a universal AC input range of 90-264VAC, making it suitable for international markets. Key features include adjustable output, power factor correction (PFC), remote on/off, and remote sense capabilities.
Designed for chassis mounting, the DPU-3200-48 operates within a temperature range of -30°C to 70°C with derating. Its dimensions are 325.1mm in length, 106.9mm in width, and 40.9mm in height.
Compliance is indicated by approval agencies such as CB, CE, cURus, EAC, and TUV. The unit is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected.
The DPU-3200-48 has an output voltage of 48V.
The rated current for the DPU-3200-48 is 67A.
The DPU-3200-48 has a power rating of 3216W.
The efficiency of the DPU-3200-48 is 94.5%.
The DPU-3200-48 accepts a universal AC input voltage range of 90-264VAC.
The DPU-3200-48 operates between -30°C and 70°C, with derating.
The dimensions of the DPU-3200-48 are 325.1mm x 106.9mm x 40.9mm.
