| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Weight |

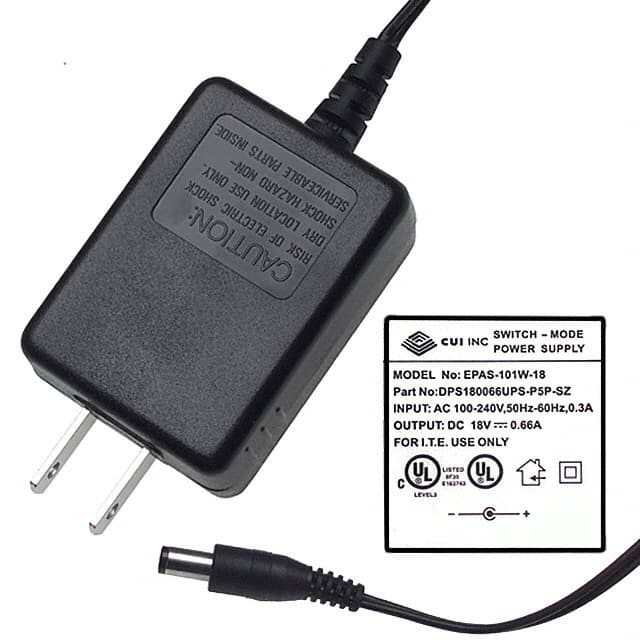

The CUI Inc. DPS180066UPS-P5P-SZ is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 18V DC output at a maximum current of 0.66A, providing a total power of 12W.
The adapter accepts a wide input voltage range of 90 V ~ 264 V ac at 50~60 Hz, making it suitable for global use. Key electrical specifications include a minimum efficiency of 60%, line regulation of ±1%, and load regulation of ±5%. It features over-voltage protection set between 19-21V dc and short circuit protection with auto-restart.
Mechanically, the unit is housed in a compact case measuring 60 L x 44 W x 25 H mm and weighs 114g. It features a NEMA 1-15P input connector for North American regions and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The integrated cord is 72 inches (1.83m) long.
Environmental considerations include an operating temperature range of 0°C to 40°C and operating humidity of 20% to 80%. The device is RoHS3 compliant and has an MSL rating of 1.
90-264V AC.
18V DC at 0.66A.
0°C to 40°C.
60 x 44 x 25 mm (L x W x H).
Yes, over voltage protection shuts down output at 19-21V; short circuit protection shuts down and auto restarts.
Barrel plug, 2.1mm ID x 5.5mm OD.
Minimum 60%.
