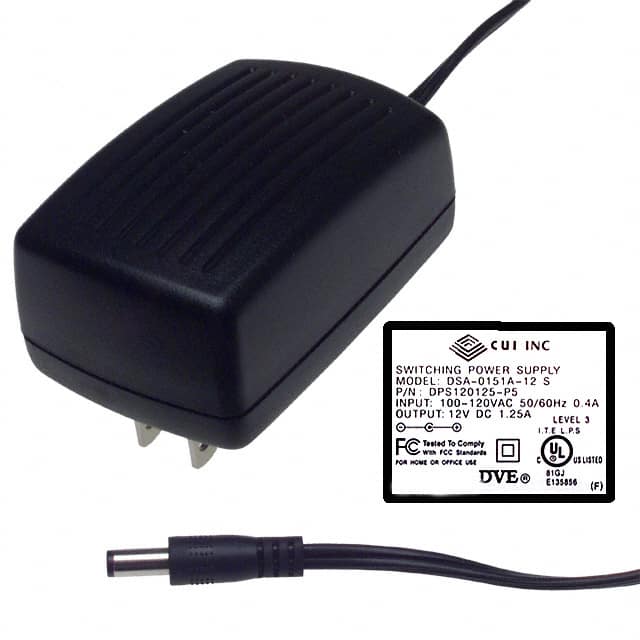

DPS120125-P5P The CUI Inc. DPS120125-P5P is a 15W AC/DC wall mount adapter providing 12V at 1.25A. It features a NEMA 1-15P input and a 2.1mm x 5.5mm barrel output.
Mfr Part #:

DPS120125-P5P

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DPS120125-P5P is a 15W AC/DC wall mount adapter providing 12V at 1.25A. It features a NEMA 1-15P input and a 2.1mm x 5.5mm barrel output.
Stock on Request

DPS120125-P5P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
Mounting Type
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
SVHC Present
Voltage
Width
View Similar Products (0)

DPS120125-P5P Description

Short technical summary and product information.

The CUI Inc. DPS120125-P5P is an AC/DC wall mount power adapter designed for ITE (Commercial) applications. It delivers a stable 12V output at 1.25A, providing a total power of 15W. The adapter features a NEMA 1-15P input connector and a standard 2.1mm inner diameter x 5.5mm outer diameter barrel plug with a positive center polarization for the output.



With a compact form factor measuring 81.0mm x 53.0mm x 35.0mm, this Class II wall mount adapter is suitable for various space-constrained designs. It operates within a temperature range of 0°C to 40°C and has an efficiency rating of 70%. The cord length is 72 inches (1.83m).



This power supply is RoHS3 compliant and has an MSL rating of 1. It is designed for use in North America.

DPS120125-P5P Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Series: DPS
Canonical Name: CUI Inc. DPS120125-P5P AC/DC Wall Mount Adapter
Subcategory: External/Internal (Off-Board)

DPS120125-P5P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DPS120125-P5P Features

  • 12V output at 1.25A for 15W power.
  • NEMA 1-15P input connector.
  • 2.1mm x 5.5mm barrel output connector.
  • Compact wall mount form factor.
  • RoHS3 compliant.

DPS120125-P5P Applications

  • Powering commercial IT equipment.
  • Suitable for networking devices.
  • Used in point-of-sale systems.
  • Ideal for small electronic devices.

DPS120125-P5P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DPS120125-P5P?

12V DC.

What is the operating temperature range?

0°C to 40°C.

What type of output connector does it use?

Barrel plug with 2.1mm inner diameter and 5.5mm outer diameter.

What is the input plug type?

NEMA 1-15P fixed blade.

What is the efficiency rating?

70%.

What is the cord length?

72 inches (1.83 meters).

What is the form factor?

Wall mount (Class II).
