| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,209 pcs
|
3209 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Halogen Free | |
| Interface | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Tape & Reel | |
| Voltage |
The DPS1035FIA-13 from Diodes Incorporated is a 1-channel power switch optimized for USB Type-C and hot-swap applications. It features a wide operating voltage range of 4.5V to 24V and can handle a current of up to 3.5A.
Key electrical specifications include a typical on-resistance (RDS(ON)) of 30mOhm and a maximum of 40mOhm. The device incorporates built-in fault detection and recovery mechanisms such as input under-voltage lockout, reverse voltage and current blocking, thermal shutdown, and input over-voltage protection. It also offers adjustable DV/DT control for managing in-rush current and system stability, with a typical fault reporting blanking time of 7ms.

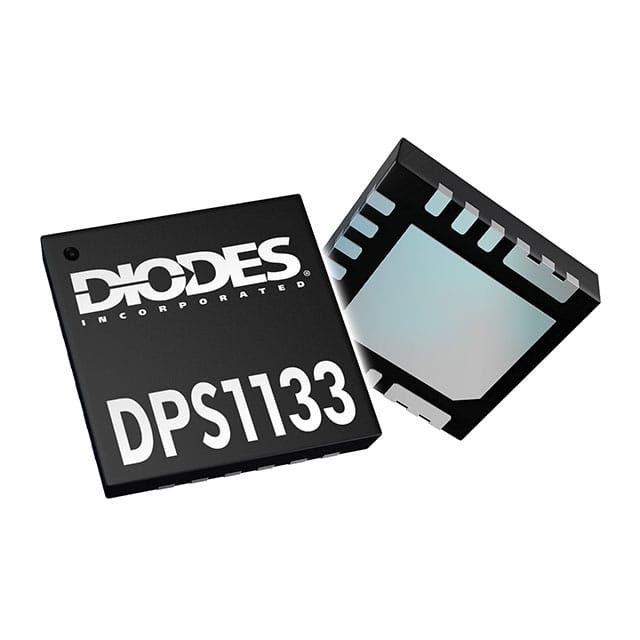

The DPS1035FIA-13 is housed in a V-QFN4040-17 package, suitable for surface mount applications. Its operating temperature range is -40°C to 125°C.
This power switch is designed for applications including notebooks, desktops, servers, tablets, docking stations, and set-top boxes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is from 4.5V to 24V.
The maximum continuous current rating is 3.5A.
The typical on-resistance is 30mOhm.
It is supplied in a V-QFN4040-17 package.
The operating temperature range is -40°C to 125°C.
It includes over temperature, over voltage, reverse current, and UVLO protection.
Yes, it is RoHS3 Compliant.
