| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| HI-POT | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

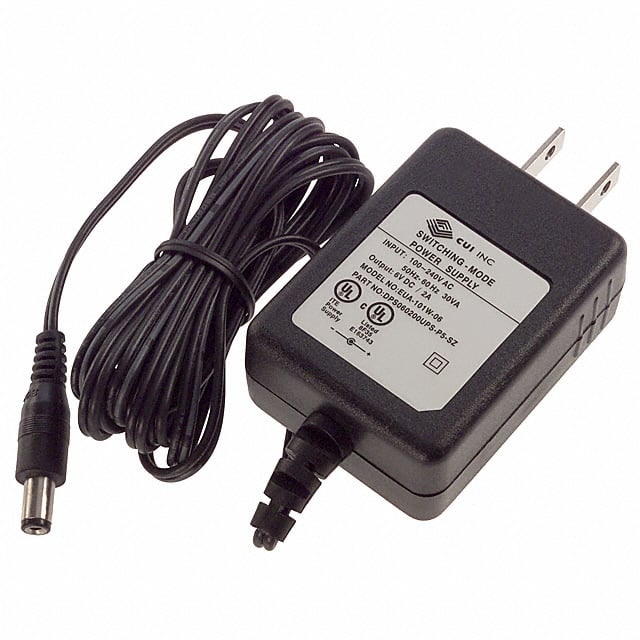

The CUI Inc. DPS060200UPS-P5P-SZ is a 12W AC/DC wall mount adapter designed for commercial ITE applications. It features a 6V DC output and accepts a wide input voltage range of 90-264V AC, with a rated input of 100-240V AC.
This adapter utilizes a NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector with positive center polarization. It operates within a temperature range of 0°C to 40°C and has dimensions of 60mm x 44mm x 25mm.
Key electrical specifications include a maximum output current of 2A, line regulation of ±1%, and load regulation of ±5%. It also features over-voltage protection and short-circuit protection with auto-restart. The adapter meets EN55022 Class B EMI standards and carries UL/cUL safety approvals.
6V dc at 2A maximum.
90-264V ac.
0°C to 40°C.
Over voltage protection (7.1-7.9V dc output shutdown) and short circuit protection with auto restart.
60% minimum.
Wall mount (Class II) with fixed NEMA 1-15P input blade and 2.1mm ID x 5.5mm OD x 9.5mm barrel plug output, positive center polarity.
UL/cUL, CB, CE, GS.
