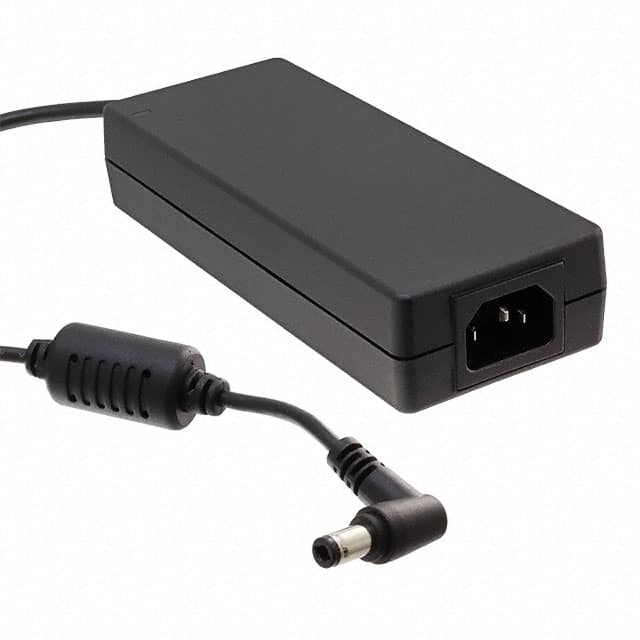

The Delta Electronics DPS-90AB-3 L is a 90-watt AC/DC desktop power adapter designed for ITE (Commercial) applications. It provides a stable 12V output with a current rating of 7.5A.
This adapter meets Level VI efficiency standards, ensuring optimal power usage. It features an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The operating temperature range is from 0°C to 40°C.
The unit is designed as a Class I desktop form factor and includes international approval agency certifications such as BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, and RCM. The cord length is 47.2 inches (1.20m), and the cord is sold separately.
0°C to 40°C.
12V.
7.5A.
90W.
Level VI.
Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM.
