| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

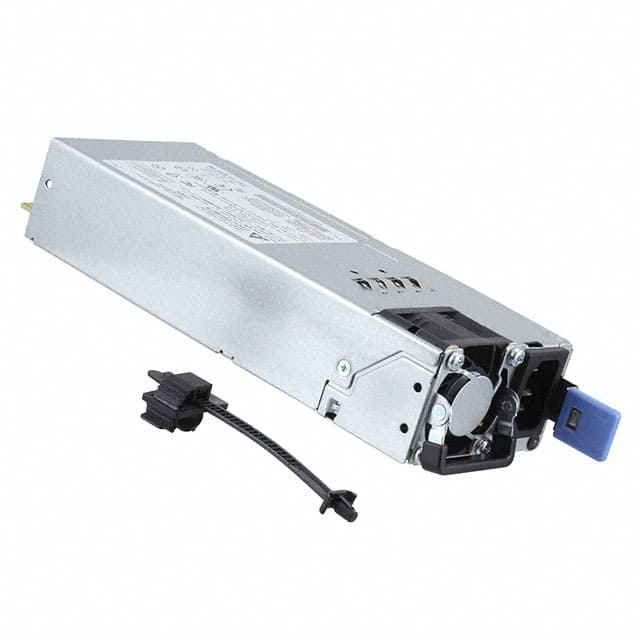

This Delta Electronics DPS-800AB-16 F is an AC/DC converter with a power rating of 800W and a single 12V output. It operates with a wide input voltage range of 90 to 264 VAC and boasts an efficiency of 94%, meeting the 80 Plus Platinum standard.
Designed for ITE (Commercial) applications, this converter features a front-end type and a rack mountable form factor. Key features include PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, and Universal Input, making it suitable for various demanding environments.
The operating temperature range is from 0°C to 50°C. It has received several approval agency certifications, including CB, CCC, CE, KC, UR, and TUV, ensuring compliance and reliability for industrial use.
90 to 264 VAC.
0°C to 50°C.
185.0mm x 73.5mm x 39.0mm (7.28 x 2.89 x 1.54 inches).
12V at 65A, providing 800W.
94% efficiency with 80 Plus Platinum certification.
Rack mount.
CB, CCC, CE, KC, UR, TUV.
