| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

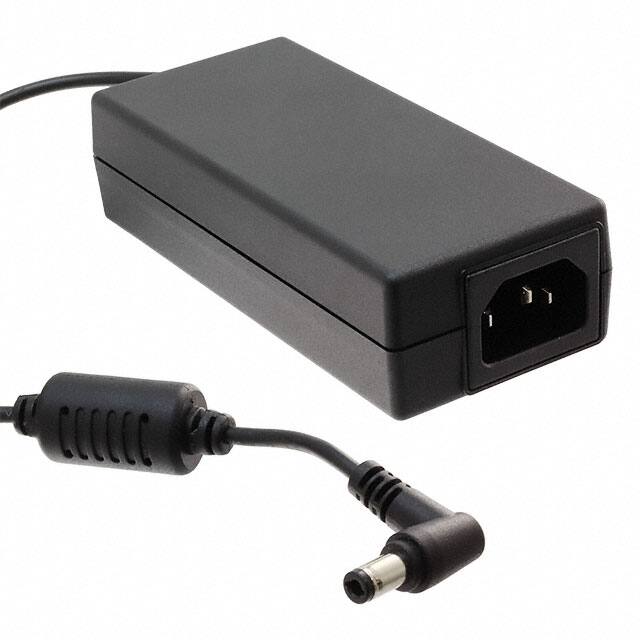

This Delta Electronics DPS-65VB K is an AC/DC external desktop adapter designed for commercial ITE applications. It provides a stable 12V output at a maximum current of 5.41A, delivering a total power of 65W. The adapter features a universal input voltage range of 90-264 VAC and utilizes an IEC 320-C14 input connector. It is designed in a Class I desktop form factor with dimensions of 115.0mm x 51.5mm x 30.5mm.
The DPS-65VB K meets Level VI efficiency standards, ensuring optimal energy usage. The output connector is a 2.5mm I.D. x 5.5mm O.D. barrel plug with a right-angle configuration. The operating temperature range is from 0°C to 40°C. This adapter is RoHS3 compliant and has a REACH Unaffected status. The input cord is sold separately, with a recommended length of 1.20m (47.2").
The DPS-65VB K has an output voltage of 12V and a maximum output current of 5.41A.
The power rating for the DPS-65VB K is 65W.
The input voltage range for the DPS-65VB K is 90 to 264 VAC.
The DPS-65VB K meets Level VI efficiency.
The dimensions of the DPS-65VB K are 115.0mm x 51.5mm x 30.5mm.
The operating temperature range for the DPS-65VB K is 0°C to 40°C.
The DPS-65VB K uses a Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm output connector.
