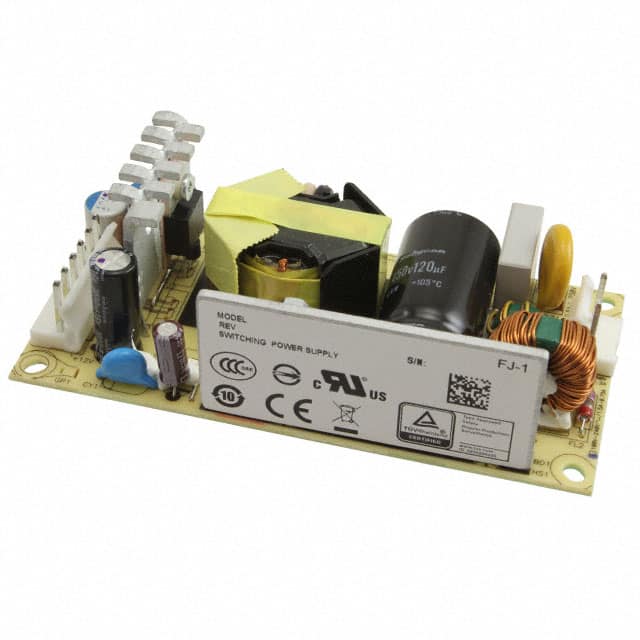

The Delta Electronics DPS-50AP-2 A is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a maximum current of 4.17A, delivering a total power of 50W.
Key electrical specifications include a wide input voltage range of 90 to 264 VAC and an efficiency of 87%. The unit offers an isolation voltage of 3kV. It operates within a temperature range of 0°C to 70°C with derating.
Mechanically, the converter features a chassis mount type and has dimensions of 101.6mm x 50.8mm x 34.6mm. It is designed with universal input capabilities, making it suitable for various global power sources. The product is listed with RoHS3 compliance and MSL 1 rating.
90 to 264 VAC.
12V.
4.17A.
50W.
0°C to 70°C with derating.
Chassis mount, open frame.
87%.
