| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

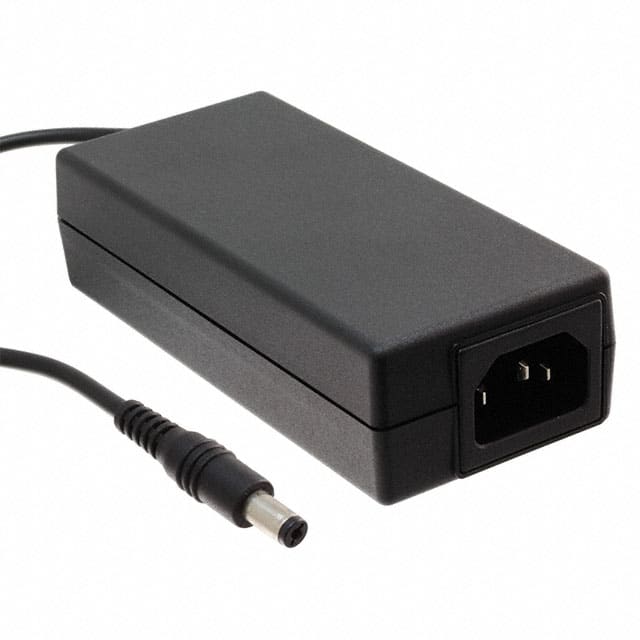

The Delta Electronics DPS-40AB-11 B is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a 12V output with a maximum current of 3.33A, providing a total power of 40W. This adapter meets the stringent Level VI efficiency requirements, ensuring optimal energy consumption.
The unit features an IEC 320-C14 input connector and a barrel plug output (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with a positive center polarity. Its physical dimensions are 115.0mm x 51.5mm x 30.5mm. The operating temperature range is from 0°C to 40°C.
Compliance is indicated by approval agencies including BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, and RCM. The adapter is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. The input cord is sold separately and has a length of 47.2 inches (1.20m).
The DPS-40AB-11 B adapter has an output power of 40W.
This adapter provides a 12V output voltage and a 3.33A output current.
The DPS-40AB-11 B adapter has an efficiency rating of Level VI.
The adapter operates within a temperature range of 0°C to 40°C.
The adapter uses an IEC 320-C14 input connector.
The adapter measures 115.0mm in length, 51.5mm in width, and 30.5mm in height.
The adapter is approved by BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, and RCM.
