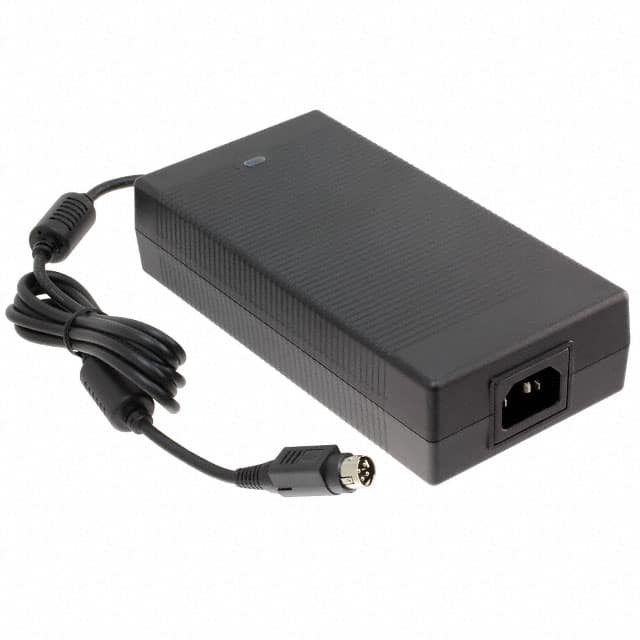

The Delta Electronics DPS-150AB-15 C is a versatile 150W AC/DC desktop power supply designed for international use. It accepts a wide input voltage range of 90-264Vac and operates at frequencies between 47-63Hz. The adapter delivers a stable 12V output with a maximum current of 12.5A.
Key features include an average efficiency of >=88%, meeting DoE Level VI standards, and an active PFC design for improved performance and energy savings. It incorporates comprehensive protection mechanisms, including over-current, over-voltage, over-temperature, and short-circuit protection. The unit boasts high reliability with a rated lifespan of over 200,000 hours at full load and 40°C.
Designed for ITE (Commercial) applications, the DPS-150AB-15 C has a compact form factor with dimensions of 170 x 85 x 40 mm. It utilizes a standard C14 AC input connector and a 4-pin DIN DC output connector. The adapter is certified by numerous international agencies, including CE, CB, UL&CUL, TUV, PSE, FCC, BSMI, KC&KCC, NRCAN, RCM, NOM, EAC, and BIS, ensuring compliance across various regions. It operates within a temperature range of 0°C to 40°C.
The output is 12V DC with a current range of 0A to 12.5A.
It accepts a universal input of 90~264Vac at 47~63Hz.
It meets DoE Level VI with a minimum average efficiency of 88%.
Over-current, over-voltage, over-temperature (latch-off), and short-circuit (auto-recovery) protection.
0°C to 40°C.
85mm (W) x 40mm (H) x 170mm (L).
