| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

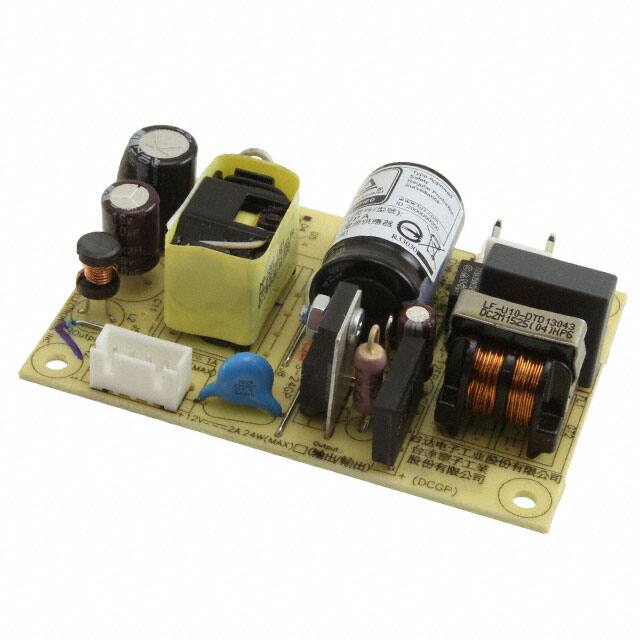

The Delta Electronics DPS-12FP A is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a current rating of 1A, delivering a total power of 12W. The converter operates with a universal input voltage range of 90 to 264 VAC and features an efficiency of 80%.
With a compact size of 75.0mm x 50.0mm x 22.6mm, it is suitable for chassis mounting. The isolation voltage is rated at 3 kV. The operating temperature range is from 0°C to 70°C, with derating. This model is RoHS3 compliant and has an MSL rating of 1.
Key specifications include a 12W power output, 1A output current, and 12V output voltage. The universal input allows for flexible power sourcing. Its open frame construction and chassis mount type make it easy to integrate into various systems.
The DPS-12FP A provides a 12V output voltage at 1A current.
The power rating for the DPS-12FP A is 12W.
The input voltage range is 90 to 264 VAC.
The dimensions are 75.0mm in length, 50.0mm in width, and 22.6mm in height.
The operating temperature range is 0°C to 70°C, with derating.
The DPS-12FP A is RoHS3 Compliant.
