| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Efficiency | |
| Input Voltage | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Standard Number | |
| Type | |
| Voltage |

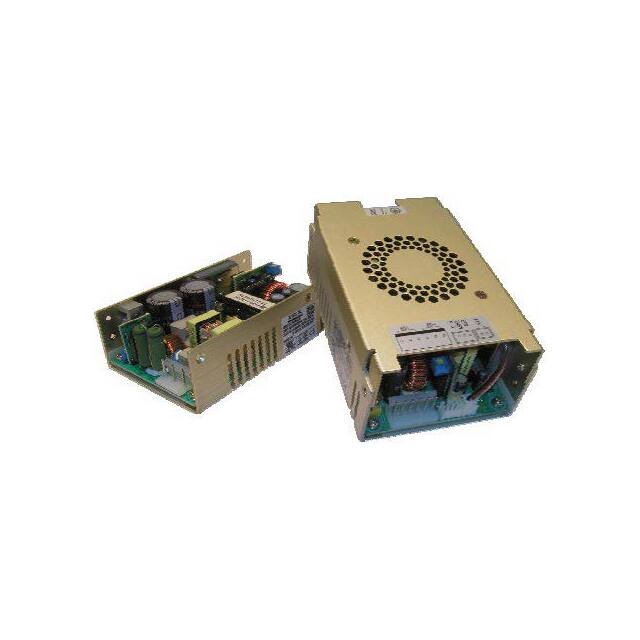

This DPRL0603U-12 AC/DC converter from Digital Power Corporation is designed for board mount applications. It delivers a 12V output voltage and can provide up to 250W of power under forced air cooling, with a reduced output of 135W under convection cooling. The unit operates with an input voltage range of 180-264 VAC and boasts an efficiency of 80% at full load and 230V input.
Key features include power factor correction to EN61000-3-2 Class A, a transient response time of less than 2.5ms for a 50% load change, and low leakage current. The converter is approved by major agencies including CE, CSA, cURus, TUV, and UL, and operates reliably in temperatures from 0°C to 70°C. Its open frame construction makes it suitable for integration into various system designs.
The DPRL0603U-12 series offers peak power capability of 600W within a 500µS duty duration. The dimensions for the U-Chassis type are 5 x 3.2 x 1.5 inches, weighing 400g. It meets the standard 60950-1.
This power supply is designed for applications requiring a stable and efficient DC power source from an AC input. Its compact size and robust specifications make it a versatile component for industrial and commercial equipment.
The input voltage range is 90-132/180-264 VAC, auto-selectable.
The U-Chassis open frame version measures 5 x 3.2 x 1.5 inches and weighs 400g.
0°C to 70°C.
250W with forced air cooling, 135W with convection cooling.
Minimum 83% at 230V full load for 12V output.
0.01% of output voltage.
Yes, Class A to EN61000-3-2.
