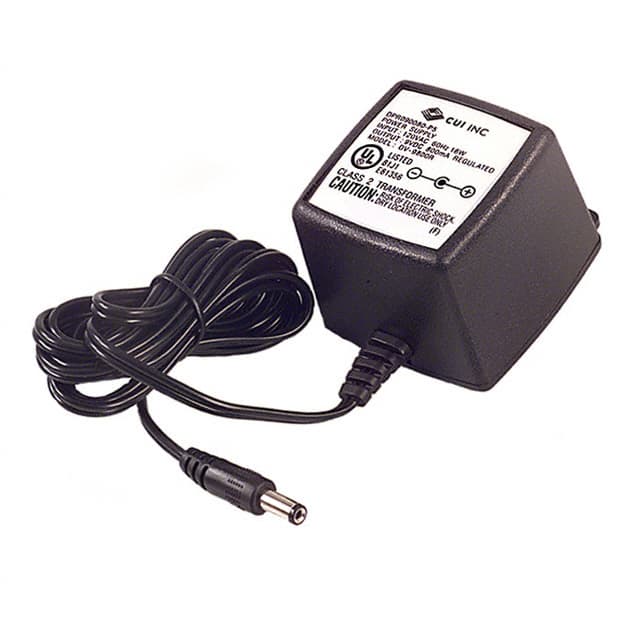

DPR090080-P5P The CUI Inc. DPR090080-P5P is an AC DC Desktop, Wall Adapter providing 9V at 7.2W. It features a NEMA 1-15P input and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output.
Mfr Part #:

DPR090080-P5P

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DPR090080-P5P is an AC DC Desktop, Wall Adapter providing 9V at 7.2W. It features a NEMA 1-15P input and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output.
Stock on Request

DPR090080-P5P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Form
Height
Input Connector
Input Type
Length
Output Connector
Polarization
Power (Watts)
Region Utilized
SVHC Present
Voltage
Width
View Similar Products (0)

DPR090080-P5P Description

Short technical summary and product information.

This AC DC Desktop, Wall Adapter from CUI Inc., part number DPR090080-P5P, is designed for ITE (Commercial) applications. It operates with an input voltage range of 100-240 VAC and delivers a stable 9VDC output at 7.2W, with a current rating of 800mA.



The adapter features a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. Its physical dimensions are 81.6mm in length, 58.7mm in width, and 49.1mm in height, with a cord length of 72 inches (1.83m). The unit is designed for wall mounting and is classified as Class II.



Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The adapter is suitable for use in North America.

DPR090080-P5P Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: AC/DC Wall Mount Adapter

DPR090080-P5P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

DPR090080-P5P Features

  • Provides 9VDC output at 7.2W power.
  • 800mA output current capability.
  • NEMA 1-15P input connector.
  • 2.1mm barrel plug output connector.
  • Wall mountable Class II design.

DPR090080-P5P Applications

  • Powers commercial information technology equipment reliably.
  • Supplies low-voltage DC to office peripherals.
  • Provides backup power for control modules.
  • Runs LED lighting systems efficiently.
  • Supports networking hardware and devices.

DPR090080-P5P FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DPR090080-P5P adapter?

The output voltage is 9 VDC.

What is the maximum output current for this adapter?

The maximum output current is 800mA.

What type of input connector does the DPR090080-P5P use?

It uses a NEMA 1-15P input connector.

What are the dimensions of the adapter?

The dimensions are 81.6mm x 58.7mm x 49.1mm.

What is the RoHS status of this product?

It is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL)?

The MSL is 1 Unlimited.
