| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Tolerance | |
| Voltage DC | |
| Voltage Rating | |
| Width |

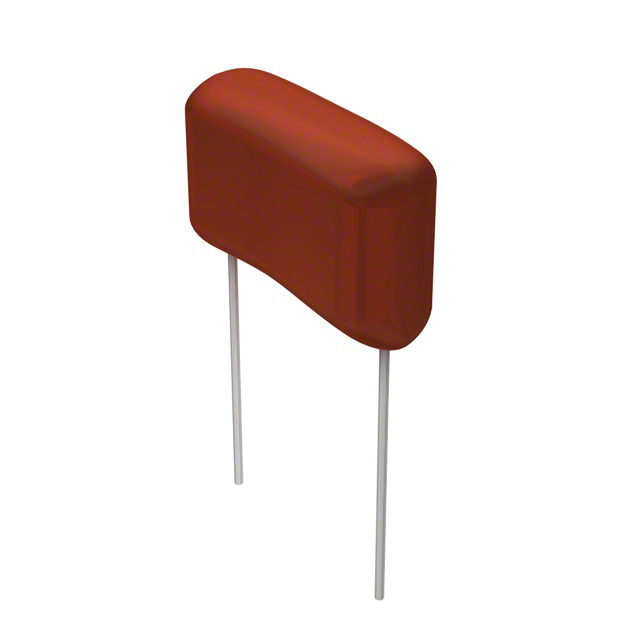

The Cornell Dubilier DPPM20D22K-F is a Type DPPM polypropylene film capacitor designed for high frequency, high pulse, and snubber applications. It offers a capacitance of 2200 pF with a ±10% tolerance and a DC voltage rating of 2000V (2kV). The capacitor utilizes a metallized polypropylene dielectric with a foil/metallized hybrid construction, providing self-healing characteristics and excellent high current capabilities.
This component is housed in a radial leaded package with a 21.00mm lead spacing and PC pin termination. Its mechanical dimensions are 25.00mm in length, 9.00mm in width, and 17.50mm in height. The operating temperature range is -40°C to 105°C, making it suitable for a variety of demanding environments.
Designed for through-hole mounting, the DPPM20D22K-F is ideal for compact snubber circuits, high frequency switching power supplies, and applications requiring high pulse or dV/dt handling. Its low inductance construction supports efficient high-frequency operation.
The capacitance is 2200 pF.
The DC voltage rating is 2000V (2kV).
The tolerance is ±10%.
The dielectric material is polypropylene (PP), metallized.
The package type is radial leaded, through hole.
The operating temperature range is -40°C to 105°C.
Typical applications include high frequency, switching, high pulse, dV/dt, and snubber circuits.
