| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Diameter | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| dv/dt |

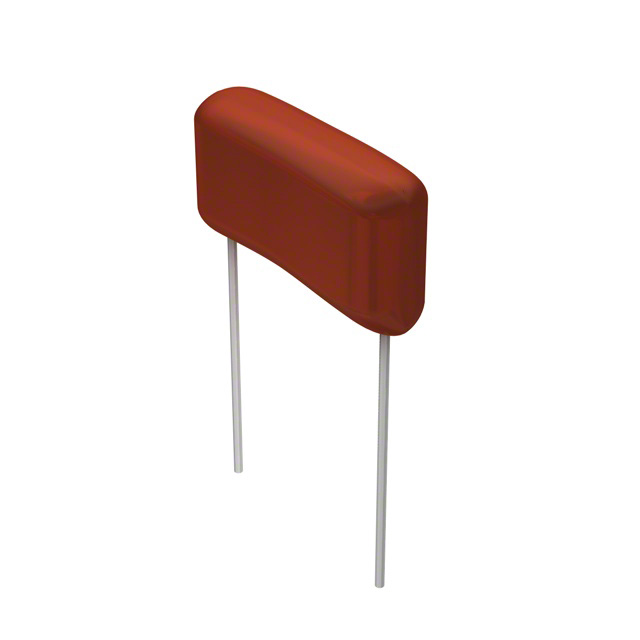

The DPPM10D39K-F is a Type DPPM polypropylene film capacitor from Cornell Dubilier Electronics (CDE). It features a metallized polypropylene dielectric with a capacitance of 3900 pF and a voltage rating of 1000V DC. The capacitor offers a dV/dt capability of 1900 V/µs, making it well-suited for snubber circuits and high-frequency switching applications. Its operating temperature range is -40°C to 105°C.
The component is housed in a radial leaded package with PC pin terminations. The body dimensions are 25.00mm length, 7.00mm width, and 14.50mm height. Lead spacing is 21.00mm with a lead diameter of 0.8mm, designed for through-hole mounting. The capacitor is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
3900 pF.
1000V DC.
Polypropylene (PP), metallized.
±10%.
Radial, through hole, with PC pins.
1900 V/µs.
-40°C to 105°C.
