| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Features | |
| Height | |
| Insulation Resistance | |
| Lead Diameter | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating DC | |
| Width | |
| dv/dt |

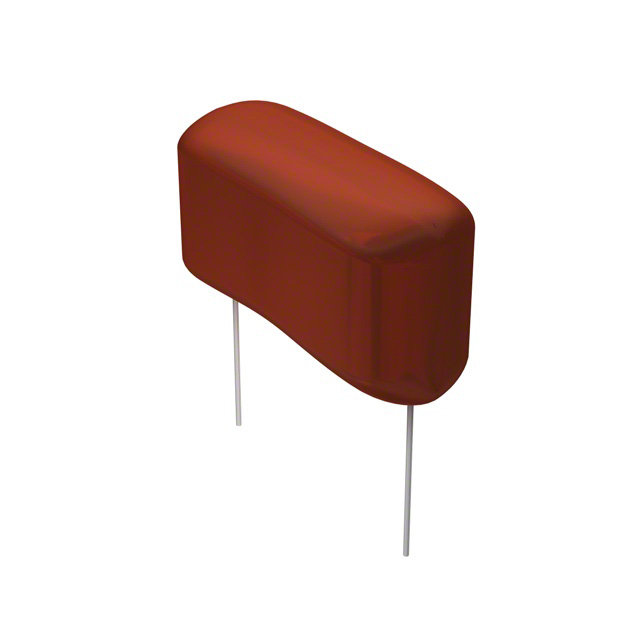

The Cornell Dubilier DPM4W2P2K-F is a 2.2µF metallized polypropylene film capacitor rated for 400Vdc. It features a ±10% capacitance tolerance and is designed for DC link, DC filtering, and high frequency switching applications. The capacitor offers low ESR and low ESL characteristics, making it suitable for high frequency power supplies.
The component is housed in a radial through-hole package with PC pin terminations. It measures 47.00mm in length, 20.00mm in width, and 31.00mm in height, with a lead spacing of 40.00mm and lead diameter of 0.8mm. The operating temperature range is -55°C to 105°C, with derating above 85°C.
This capacitor is part of CDE's Type DPM series, which features non-inductive windings and welded lead terminations for high continuous current handling. The metallized polypropylene dielectric provides stable performance over a wide temperature range.
The capacitance is 2.2 µF with a tolerance of ±10%.
The DC voltage rating is 400 Vdc.
The dielectric is metallized polypropylene (PP).
The operating temperature range is -55°C to 105°C.
The package is radial through-hole with a lead spacing of 40.00mm.
Dissipation factor is 10% maximum at 1kHz, 25°C. Insulation resistance is 30000 MΩ minimum.
The dV/dt rating is 8 V/µs.
