| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dielectric Strength | |
| Dissipation Factor | |
| Features | |
| Height | |
| Insulation Resistance (Minimum) | |
| Insulation Resistance (Product) | |
| Lead Diameter | |
| Lead Spacing | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Rated Voltage (DC) | |
| Rated Voltage AC | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| dv/dt |

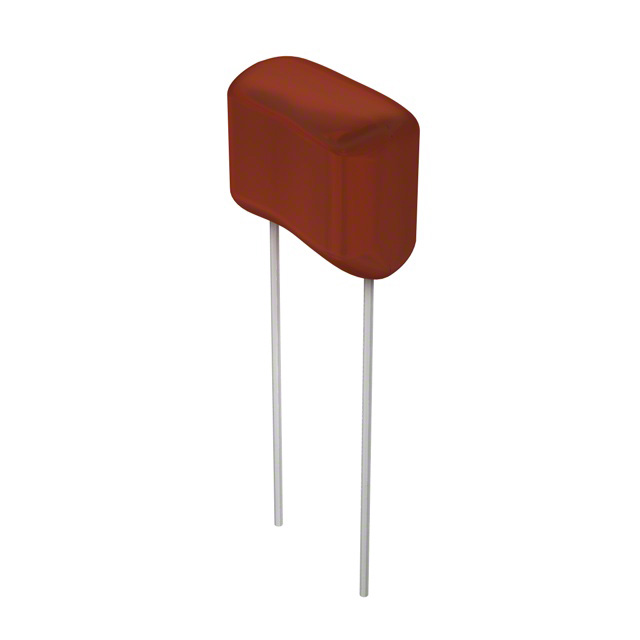

The DPM2S33K is a metallized polypropylene film capacitor from Cornell Dubilier Electronics (CDE), part of the Type DPM series. It offers a capacitance of 0.033 µF with ±10% tolerance and is rated for 250 VDC (160 VAC). The capacitor uses a metallized polypropylene dielectric, providing low ESR and low ESL for efficient operation in high frequency circuits.
Typical applications include DC link and DC filtering in power supplies, as well as high frequency switching power supply designs. The component is rated for a dV/dt of 34 V/µs and has a maximum dissipation factor of 10% at 1 kHz. Insulation resistance product is 10000 MΩ·µF minimum, and dielectric strength is 175% for 1 minute.
The capacitor is housed in a radial leaded, through-hole package with PC pin terminations. Lead spacing is 10.00 mm, and lead diameter is 0.6 mm. Case dimensions are 13.00 mm length, 7.00 mm width, and 11.00 mm maximum height (per datasheet). Operating temperature range is -55°C to +105°C, with derating above 85°C. The part is RoHS3 compliant (unverified).
0.033 µF.
250 VDC (160 VAC).
Metallized polypropylene (PP).
±10%.
Radial leaded, through hole, with PC pins.
-55°C to +105°C.
DC link, DC filtering, and high frequency switching power supplies.
