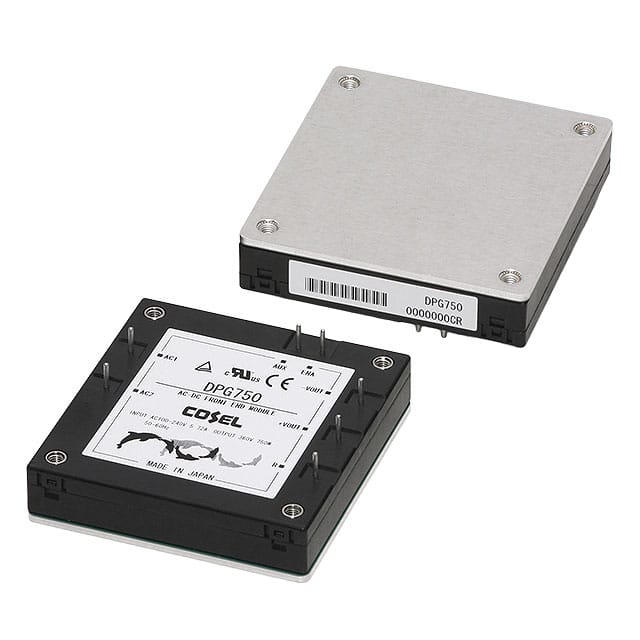

The Cosel DPG750 is a high-performance AC-DC power module designed for distributed power systems. It features a maximum output wattage of 750W and a fixed output voltage of 360V with an accuracy of ±2%.
This power module operates with a universal input voltage range of 85 to 264 VAC, ensuring compatibility worldwide. It boasts high efficiency, reaching up to 96% at AC200V input, and maintains a power factor of 0.96 typical. The DPG750 includes built-in protection circuits for overvoltage (DC400-450V) and thermal events, along with inrush current limiting.
Designed for reliability, the DPG750 complies with IEC61000-3-2 for harmonic attenuation and features an enable signal (ENA). It is non-isolated between input and output, with isolation of AC2,800V 1minute for input/output to FG. The module operates in a wide temperature range of -40°C to 100°C (with derating) and is cooled via conduction.
Packaged in a 7-DIP module format with through-hole mounting, the DPG750 has dimensions of 58.4mm x 12.7mm x 61.0mm. It carries safety agency approvals including CE, cURus, and TUV, and is RoHS3 compliant.
85 to 264VAC single phase.
360V DC.
96% typical for the 750W model.
0.96 typical at 100VAC and 0.93 at 200VAC.
Conduction cooling via an external heat sink.
7-DIP through-hole module, 58.4 x 12.7 x 61mm.
-40°C to 100°C on the aluminum base plate.
