| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Temperature Rise | |
| Voltage | |
| Width |

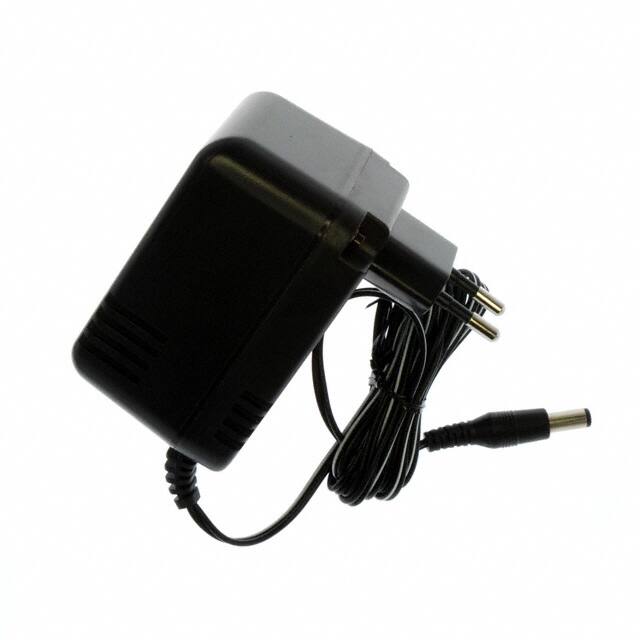

The CUI Inc. DPD120080E-P5P-SZ is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 12V DC output at 800mA, delivering a total power of 9.6W.
This adapter operates with a primary rated input of 230V AC at 50 Hz, featuring a primary exciting current of 70 mA rms max. The full load voltage is maintained at 12V with a ±5% tolerance, and the no-load voltage does not exceed 17.5V max. Safety is ensured with TUV/GS certification.
The unit is housed in a Class II, Wall Mount form factor, with dimensions of 81.6mm L x 58.7mm W x 49.1mm H. It features a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The input connector is CEE 7/16, and the unit comes with a 72-inch (1.83m) cord.
Testing conditions include an ambient temperature of 40°C ±2°C and 90-95% humidity for 96 hours at full load. The primary winding temperature rise is 70°C max. Insulation resistance is rated at >= 100 M Ohm at 500 V dc, with various HI-POT test ratings including 3000V AC from input to output and 4500V AC from primary to secondary.
12V DC.
800mA.
230V AC at 50Hz.
Barrel plug, 2.1mm ID x 5.5mm OD x 9.5mm, positive center.
TUV/GS.
72 inches (1.83m).
81.6mm x 58.7mm x 49.1mm.
