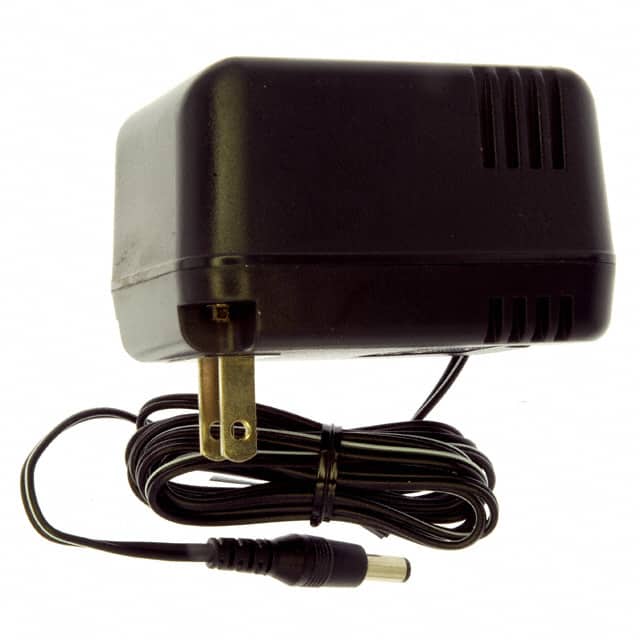

DPD120080-P5P-SZ AC/DC wall mount adapter with 12V output at 800mA, 9.6W power. Input 120VAC 60Hz. UL/cUL approved.
Mfr Part #:

DPD120080-P5P-SZ

Available from 1 distributors
Mfr Name: CUI Inc.
CUI Inc.
AC/DC wall mount adapter with 12V output at 800mA, 9.6W power. Input 120VAC 60Hz. UL/cUL approved.
✓ Total Stock: 12 pcs

DPD120080-P5P-SZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DPD120080-P5P-SZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Insulation Resistance
Length
Output Connector
Polarization
Power (Watts)
Region Utilized
Temperature Rise
Voltage
Weight
Width
View Similar Products (0)

DPD120080-P5P-SZ Description

Short technical summary and product information.

The CUI Inc. DPD120080-P5P-SZ is a linear AC/DC wall mount adapter providing a regulated 12V DC output at 800mA (9.6W). It accepts a nominal 120VAC 60Hz input and features a NEMA 1-15P input connector. The output is delivered through a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter.



The adapter is UL/cUL safety approved and RoHS compliant. It has a maximum no-load voltage of 18V and a full load voltage of 12V ±5% at 800mA. The unit is designed for North American wall outlets with positive center polarization.



Mechanically, it is a Class II wall mount design weighing 390g with dimensions of 81.6mm x 58.7mm x 49.1mm. The output cord length is 1.83m (72 inches). Dielectric withstanding voltage between input and output is 1240VAC for 1 minute and 1600VAC for 1 second.

DPD120080-P5P-SZ Quick Information

Product Type: AC/DC Wall Adapter
Series: DPD
Canonical Name: AC/DC Wall Mount Adapter 12V 800mA
Subcategory: AC DC Desktop, Wall Adapters

DPD120080-P5P-SZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DPD120080-P5P-SZ Features

  • Linear regulated 12V DC output at 800mA.
  • UL/cUL safety agency approval.
  • RoHS compliant construction.
  • 120VAC 60Hz North American input.
  • Positive center polarity barrel connector.

DPD120080-P5P-SZ Applications

  • Powering low-noise analog circuits.
  • General purpose 12V device power supply.
  • Bench test and prototyping power source.
  • Replacement for original equipment adapters.

DPD120080-P5P-SZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the DPD120080-P5P-SZ?

The output voltage is 12V DC at 800mA (9.6W).

What input voltage and frequency does this adapter require?

The input is 120VAC at 60Hz.

Is the DPD120080-P5P-SZ RoHS compliant?

Yes, this adapter is RoHS compliant.

What safety approvals does this adapter have?

The DPD120080-P5P-SZ is UL/cUL approved.

What is the output connector type?

The output connector is a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm.

What is the form factor of this power supply?

This is a wall mount (Class II) adapter intended for North America.
