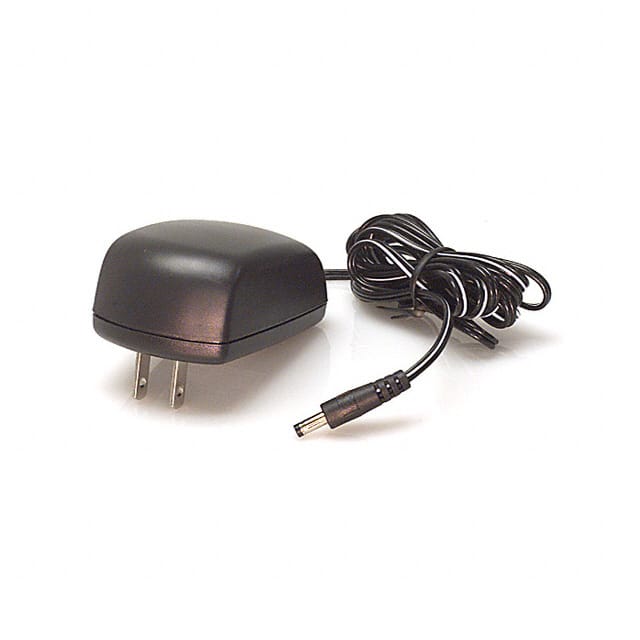

DPD120030-P13P-TC The CUI Inc. DPD120030-P13P-TC is an AC/DC wall mount adapter providing 12V at 3.6W. It features a NEMA 1-15P input and a 1.7mm I.D. x 4.0mm O.D. barrel plug output.
Mfr Part #:

DPD120030-P13P-TC

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DPD120030-P13P-TC is an AC/DC wall mount adapter providing 12V at 3.6W. It features a NEMA 1-15P input and a 1.7mm I.D. x 4.0mm O.D. barrel plug output.
Stock on Request

DPD120030-P13P-TC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Form
Height
Input Connector
Input Type
Length
Output Connector
Polarization
Power (Watts)
Region Utilized
SVHC Present
Voltage
Width
View Similar Products (0)

DPD120030-P13P-TC Description

Short technical summary and product information.

This CUI Inc. DPD120030-P13P-TC is an AC/DC wall mount adapter designed for ITE (Commercial) applications in North America. It operates with an input voltage range of 100-240 VAC and delivers a stable 12VDC output at 3.6W, with a current rating of 300mA.



The adapter features a NEMA 1-15P input connector and a standard barrel plug output (1.7mm I.D. x 4.0mm O.D. x 9.5mm) with a positive center polarization. The cord length is 72 inches (1.83m). Its dimensions are 59.0mm x 45.0mm x 39.5mm, and it is designed as a Wall Mount (Class II) unit.



Compliance includes RoHS3, MSL 1, and REACH Unaffected. This adapter is suitable for various commercial electronic equipment requiring a reliable power source.

DPD120030-P13P-TC Quick Information

Product Type: AC/DC Wall Adapter
Canonical Name: CUI Inc. DPD120030-P13P-TC AC/DC Wall Mount Adapter
Subcategory: AC/DC Wall Adapter

DPD120030-P13P-TC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DPD120030-P13P-TC Features

  • 12VDC output at 3.6W power.
  • 300mA output current capability.
  • NEMA 1-15P input connector.
  • 1.7mm I.D. x 4.0mm O.D. barrel plug output.
  • Suitable for North American regions.

DPD120030-P13P-TC Applications

  • Ideal for ITE (Commercial) equipment.
  • Designed for North American power outlets.
  • Provides stable 12VDC power source.
  • Compact wall mount form factor.

DPD120030-P13P-TC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the DPD120030-P13P-TC?

The output voltage is 12 VDC and the output current is 300 mA.

What type of input connector does this adapter use?

It uses a NEMA 1-15P fixed blade input connector.

What is the output connector type and polarity?

The output connector is a barrel plug with 1.7 mm I.D. and 4.0 mm O.D., with positive center polarity.

What is the power rating of this adapter?

The maximum power rating is 3.6 W.

What is the input voltage range?

The input voltage range is 100-240 VAC.

What is the form factor of this adapter?

It is a wall mount (Class II) adapter.
