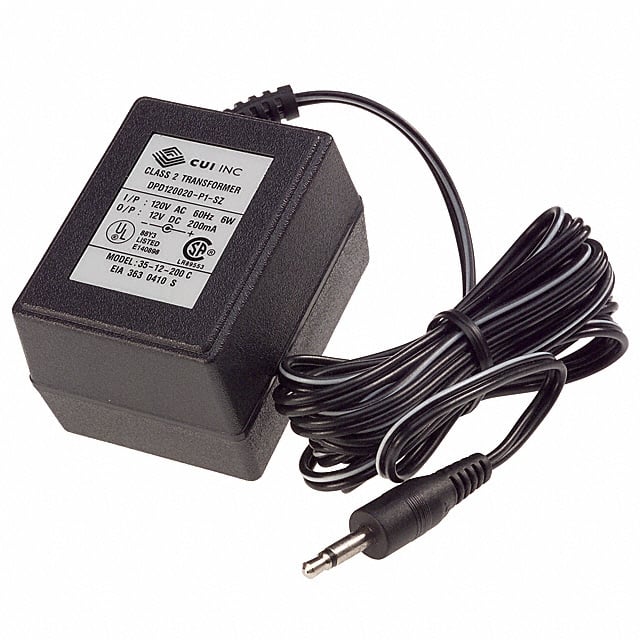

DPD120020-P1P-SZ The CUI Inc. DPD120020-P1P-SZ is an AC/DC wall mount adapter providing a 12V output at 200mA, with a total power of 2.4W. It features a NEMA 1-15P input connector and a Phono Plug output.
Mfr Part #:

DPD120020-P1P-SZ

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DPD120020-P1P-SZ is an AC/DC wall mount adapter providing a 12V output at 200mA, with a total power of 2.4W. It features a NEMA 1-15P input connector and a Phono Plug output.
Stock on Request

DPD120020-P1P-SZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Cord Length
Current
Form
Height
Industrial Grade
Input Connector
Input Type
Length
Medical Grade
Military Grade
Output Connector
Polarization
Power (Watts)
Region Utilized
SVHC Present
Voltage
Width
View Similar Products (0)

DPD120020-P1P-SZ Description

Short technical summary and product information.

This AC/DC wall mount adapter from CUI Inc., part number DPD120020-P1P-SZ, is designed for ITE (Commercial) applications. It delivers a stable 12V output with a current rating of 200mA, totaling 2.4W of power.



The adapter features a NEMA 1-15P input connector suitable for North American outlets and a Phono Plug (3.5mm O.D. x 14.5mm) for the output. Its form factor is a Class II wall mountable unit, ensuring convenient integration into various setups.



With dimensions of 54.6mm in length, 42.5mm in width, and 37.0mm in height, this adapter is compact. It includes a 72-inch (1.83m) cord for flexible placement. The output polarization is specified as Positive Tip, Negative Sleeve.



The product is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under normal conditions. It is also REACH unaffected.

DPD120020-P1P-SZ Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: CUI Inc. DPD120020-P1P-SZ AC/DC Wall Mount Adapter
Subcategory: Wall Mount Adapter

DPD120020-P1P-SZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

DPD120020-P1P-SZ Features

  • 12V output voltage at 200mA current.
  • 2.4W total power output.
  • NEMA 1-15P input and Phono Plug output.
  • Compact wall mountable design.
  • RoHS3 compliant and MSL 1 rated.

DPD120020-P1P-SZ Applications

  • Suitable for ITE commercial applications.
  • Ideal for powering small electronic devices.
  • Provides a stable 12V DC power source.
  • Convenient wall plug-in design.

DPD120020-P1P-SZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DPD120020-P1P-SZ?

12V DC.

What is the output current rating?

200mA.

What is the power rating?

2.4W.

What type of output connector does it have?

A 3.5mm O.D. x 14.5mm phono plug.

What is the cord length?

72 inches (1.83m).

What is the output polarization?

Positive tip, negative sleeve.

What form factor is this adapter?

Wall mount (Class II).
