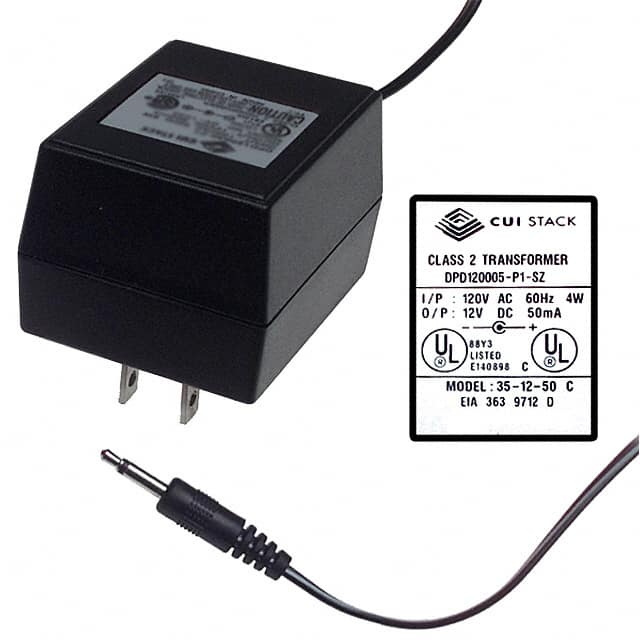

DPD120005-P1P-SZ The CUI Inc. DPD120005-P1P-SZ is an AC/DC wall mount adapter with a 12V output and 50mA current rating. It features a 600mW power capacity and a NEMA 1-15P input connector.
Mfr Part #:

DPD120005-P1P-SZ

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DPD120005-P1P-SZ is an AC/DC wall mount adapter with a 12V output and 50mA current rating. It features a 600mW power capacity and a NEMA 1-15P input connector.
Stock on Request

DPD120005-P1P-SZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Form
Height
Input Connector
Input Type
Input Voltage
Length
Mounting Type
Output Connector
Polarization
Power (Watts)
Region Utilized
Voltage
Width
View Similar Products (0)

DPD120005-P1P-SZ Description

Short technical summary and product information.

The CUI Inc. DPD120005-P1P-SZ is a compact AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 12V output with a maximum current of 50mA, delivering a total power of 600mW.



The adapter utilizes a NEMA 1-15P input connector for North American power outlets and features a Phono Plug (3.5mm O.D. x 14.5mm) for the output, with positive tip and negative sleeve polarization. Its dimensions are 54.6mm x 42.5mm x 37.0mm, making it suitable for space-constrained designs. The cord length is 72 inches (1.83m).



This Class II adapter is designed for wall mounting and operates according to specified conditions, emphasizing use in dry environments. It adheres to RoHS3 compliance standards.

DPD120005-P1P-SZ Quick Information

Product Type: AC/DC Wall Adapter
Canonical Name: CUI Inc. DPD120005-P1P-SZ AC/DC Wall Mount Adapter
Subcategory: AC DC Desktop, Wall Adapters

DPD120005-P1P-SZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DPD120005-P1P-SZ Features

  • Provides 12V output at 50mA.
  • Delivers 600mW of power.
  • Features NEMA 1-15P input connector.
  • Uses a 3.5mm Phono Plug output.
  • Compact wall-mount design.

DPD120005-P1P-SZ Applications

  • Used for powering ITE equipment
  • Suitable for wall-mount adapter applications
  • Provides 12V DC to low-power devices
  • Ideal for commercial electronic devices
  • Operates in North American regions

DPD120005-P1P-SZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DPD120005-P1P-SZ?

12V DC.

What is the input voltage requirement?

120VAC.

What is the output current rating?

50mA.

What is the power rating?

600mW.

What type of output connector does it use?

Phono Plug, 3.5mm O.D. x 14.5mm.

What is the mounting type?

Wall Mount (Class II).

What is the polarization?

Positive Tip, Negative Sleeve.
