| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Temperature Rise | |
| Voltage | |
| Weight | |
| Width |

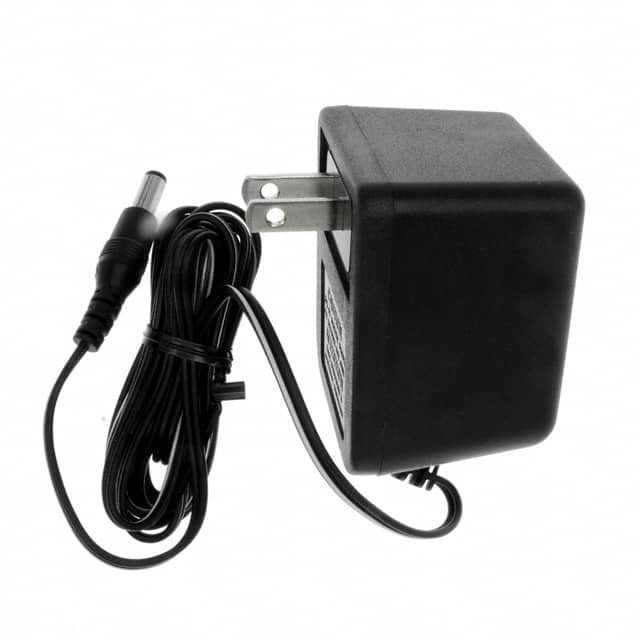

This AC/DC wall mount adapter from CUI Inc., part number DPD090050-P5P-SZ, provides a stable 9V DC output at 4.5W, making it suitable for various ITE (Commercial) applications. It operates with a primary rated input of 120V AC at 60 Hz.
The adapter features a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output with a positive center polarity. The unit is designed as a Class II wall mount form factor, ensuring ease of use and integration.
Key specifications include a 500mA output current, a no-load voltage of 14V max, and a full-load voltage of 9V ±5%. The primary exciting current is rated at 70mA rms max. The adapter has undergone rigorous testing, including insulation resistance tests and HI-POT tests, adhering to UL/cUL safety standards.
With a compact mechanical design measuring 62.7mm x 51.0mm x 42.0mm and weighing 256g, this adapter is practical for deployment in various electronic systems. It also complies with RoHS3 standards.
9V DC at 500mA.
120V AC at 60Hz.
2.1mm ID x 5.5mm OD barrel plug with positive center polarity.
Yes, it meets UL/cUL safety standard.
62.7mm long, 51.0mm wide, 42.0mm high, 256 grams.
Fixed NEMA 1-15P blade for North America.
