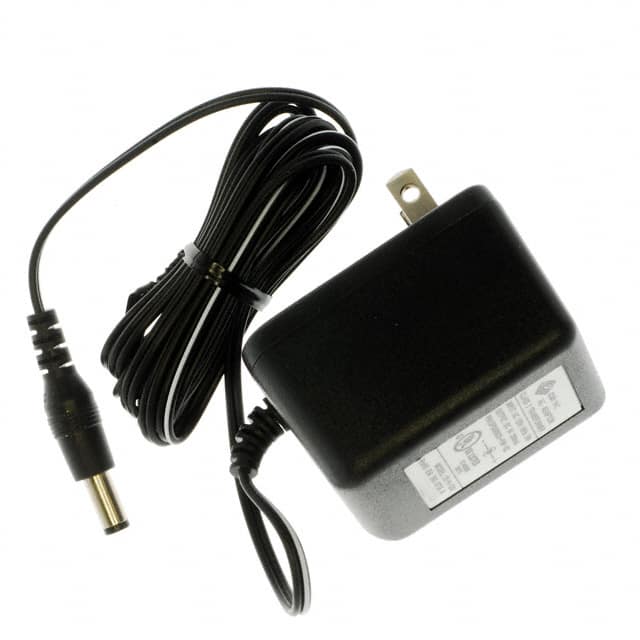

DPD090020-P5P-SZ The CUI Inc. DPD090020-P5P-SZ is an AC/DC wall mount adapter providing a 9V DC output at 200mA. It features a NEMA 1-15P input connector and a 2.1mm x 5.5mm barrel plug output.
Mfr Part #:

DPD090020-P5P-SZ

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DPD090020-P5P-SZ is an AC/DC wall mount adapter providing a 9V DC output at 200mA. It features a NEMA 1-15P input connector and a 2.1mm x 5.5mm barrel plug output.
Stock on Request

DPD090020-P5P-SZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Insulation Resistance
Length
Output Connector
Output Current
Output Voltage
Polarization
Power (Watts)
Region Utilized
Temperature Rise
Voltage
Weight
Width
View Similar Products (0)

DPD090020-P5P-SZ Description

Short technical summary and product information.

This AC/DC wall mount adapter from CUI Inc., part number DPD090020-P5P-SZ, delivers a stable 9V DC output at a current of 200mA, with a total power rating of 1.8W. It is designed for ITE (Commercial) applications and utilizes a fixed blade NEMA 1-15P input connector, suitable for North American regions.



The adapter features a standard barrel plug output with dimensions of 2.1mm inner diameter and 5.5mm outer diameter, and a plug length of 9.5mm. The cord length is 72 inches (1.83m). The unit is housed in a black case and plug, with a black cord.



Key electrical specifications include a primary rated input of 120V AC at 60 Hz, a maximum primary exciting current of 50mA rms, a no-load voltage of 16.5V max., and a full load voltage tolerance of ±5% at 9V. The insulation resistance is rated at a minimum of 100 M Ohm at 500V DC, with HI-POT tests performed at various AC voltage levels for safety assurance.



Mechanically, the adapter measures 56.0mm in length, 44.0mm in width, and 36.0mm in height. It weighs 160g. The unit is classified as Wall Mount (Class II) and has undergone rigorous testing under specific ambient temperature and humidity conditions.

DPD090020-P5P-SZ Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: CUI Inc. DPD090020-P5P-SZ AC/DC Wall Mount Adapter
Subcategory: Wall Mount Adapter

DPD090020-P5P-SZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DPD090020-P5P-SZ Features

  • Provides 9V DC output at 200mA.
  • 1.8W total power output.
  • NEMA 1-15P input connector.
  • 2.1mm x 5.5mm barrel plug output.
  • UL/cUL safety certified.

DPD090020-P5P-SZ Applications

  • Powers low-power 9V DC devices.
  • Suitable for North American wall outlets.
  • Works with positive center barrel connectors.
  • Ideal for fixed-blade outlet installations.

DPD090020-P5P-SZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DPD090020-P5P-SZ?

The output voltage is 9V DC at 200mA full load, with a tolerance of ±5%.

What input voltage and frequency does the adapter require?

The adapter requires 120V AC at 60Hz.

What is the output connector type and polarity?

The output connector is a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with positive center polarity.

What is the form factor of the DPD090020-P5P-SZ?

It is a wall mount Class II adapter with a fixed blade NEMA 1-15P input and dimensions of 56.0mm x 44.0mm x 36.0mm.

What safety approvals does the adapter carry?

The adapter carries UL/cUL safety approval.

What is the maximum no-load voltage?

The maximum no-load voltage is 16.5V.

What are the HI-POT test ratings?

HI-POT test from input to output is 1240V AC for 1 minute and 1600V AC for 1 second.
