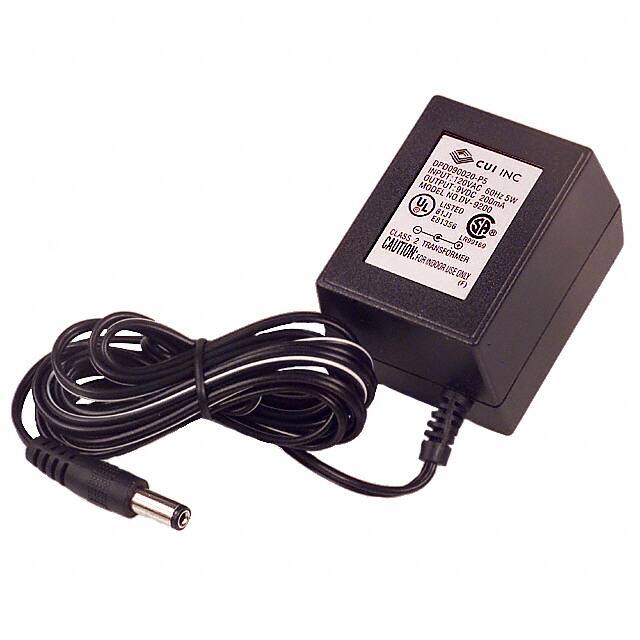

DPD090020-P5P The CUI Inc. DPD090020-P5P is a 9V, 200mA AC/DC wall mount adapter with a 1.8W power rating. It features a NEMA 1-15P input connector and a 2.1mm x 5.5mm barrel plug output.
Mfr Part #:

DPD090020-P5P

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. DPD090020-P5P is a 9V, 200mA AC/DC wall mount adapter with a 1.8W power rating. It features a NEMA 1-15P input connector and a 2.1mm x 5.5mm barrel plug output.
Stock on Request

DPD090020-P5P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Form
Input Connector
Input Type
Input Voltage
Output Connector
Output Voltage
Polarization
Power (Watts)
Region Utilized
Voltage
View Similar Products (0)

DPD090020-P5P Description

Short technical summary and product information.

This CUI Inc. DPD090020-P5P is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 9V output with a maximum current of 200mA, delivering up to 1.8W of power.



The adapter utilizes a standard NEMA 1-15P input connector and a common 2.1mm I.D. x 5.5mm O.D. barrel plug output with positive center polarization. Its compact dimensions of 56.0mm x 44.0mm x 36.0mm make it suitable for various space-constrained designs.



Designed for use in North America, this wall mount adapter operates from a 120VAC input. It adheres to RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended conditions.

DPD090020-P5P Quick Information

Product Type: AC/DC Wall Mount Adapter
Canonical Name: CUI Inc. DPD090020-P5P AC/DC Wall Mount Adapter
Subcategory: Wall Mount

DPD090020-P5P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DPD090020-P5P Features

  • Provides 9V output at 200mA.
  • Delivers up to 1.8W of power.
  • Features NEMA 1-15P input connector.
  • Uses 2.1mm x 5.5mm barrel plug output.
  • Compact wall mount design.

DPD090020-P5P Applications

  • Suitable for ITE commercial applications.
  • Ideal for North American regions.
  • Used in devices requiring 9V power.
  • Compact power solution for electronics.

DPD090020-P5P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the DPD090020-P5P adapter?

The output voltage is 9V.

What is the maximum output current for this adapter?

The maximum output current is 200mA.

What is the power rating of the DPD090020-P5P?

The adapter has a power rating of 1.8W, with a maximum of 2W.

What type of input connector does the DPD090020-P5P use?

It uses a NEMA 1-15P input connector.

What are the dimensions of the DPD090020-P5P adapter?

The dimensions are 56.0mm x 44.0mm x 36.0mm.

Is the DPD090020-P5P adapter RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
