| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

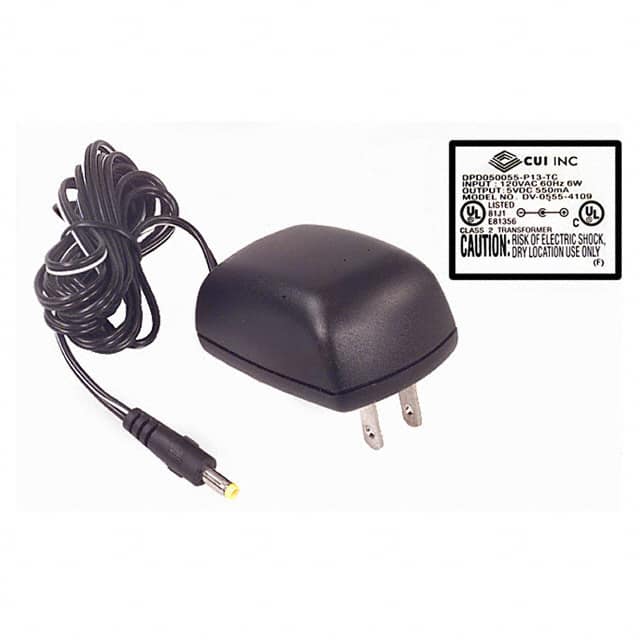

The CUI Inc. DPD050055-P13P-TC is an AC/DC wall mount adapter with a 5V output voltage and a maximum output current of 500mA, delivering 2.5W of power. It is designed for ITE (Commercial) applications and operates with an input voltage range of 90 to 264 VAC.
This adapter meets Efficiency Level VI standards and has a no-load power consumption of 75mW maximum. It features a fixed blade input connector suitable for North America and a barrel plug output connector (1.7mm I.D. x 4.0mm O.D. x 9.5mm). The adapter has a cord length of 72 inches (1.83m) and is housed in a Class II wall mount form factor.
Key specifications include positive center polarization and dimensions of 59.0mm x 45.0mm x 39.5mm. The operating temperature range is 0°C to 40°C. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The DPD050055-P13P-TC adapter has an output voltage of 5V and a power rating of 2.5W.
The maximum output current for the DPD050055-P13P-TC adapter is 500mA.
The adapter accepts an input voltage range of 90 to 264 VAC.
This adapter meets Efficiency Level VI.
The dimensions of the adapter are 59.0mm x 45.0mm x 39.5mm.
The operating temperature range is 0°C to 40°C.
Yes, the adapter is RoHS3 Compliant.
