| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
740 pcs
|
740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The DPA424SN-TL from Power Integrations is part of the DPA-Switch family, providing highly integrated DC-DC conversion solutions for applications requiring 16-75 VDC input. This IC is designed for Power over Ethernet (PoE) and telecom applications, integrating a high-frequency MOSFET and PWM control to reduce external component count and save space and cost.
Key electrical specifications include a wide input voltage range of 16-75 VDC and pin-selectable switching frequencies of 300 kHz or 400 kHz. Depending on the topology, it can deliver up to 35 W of output power in a forward configuration or up to 26 W in a flyback configuration, with output power limited by the device's internal current limit. The operating temperature range is -40°C to 125°C.
The DPA424SN-TL is available in a Surface Mount S-PAK package (SPak-7, 6 leads + Tab). It features integrated auto-restart for overload protection, externally programmable current limit, and line undervoltage detection meeting ETSI standards. The device also includes built-in soft-start for minimal stress and overshoot during power-up.
This IC is suitable for distributed power architectures, VoIP phones, WLAN devices, security cameras, and telco central office equipment. Its high integration and efficiency make it a cost-effective solution for demanding power conversion needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DPA424SN-TL has a wide input voltage range of 16-75 VDC.
In a forward configuration with a 36-75 VDC input, the maximum output power is 35 W. In a flyback configuration with a 36-75 VDC input, the maximum output power is 26 W.
The DPA424SN-TL operates within a temperature range of -40°C to 125°C.

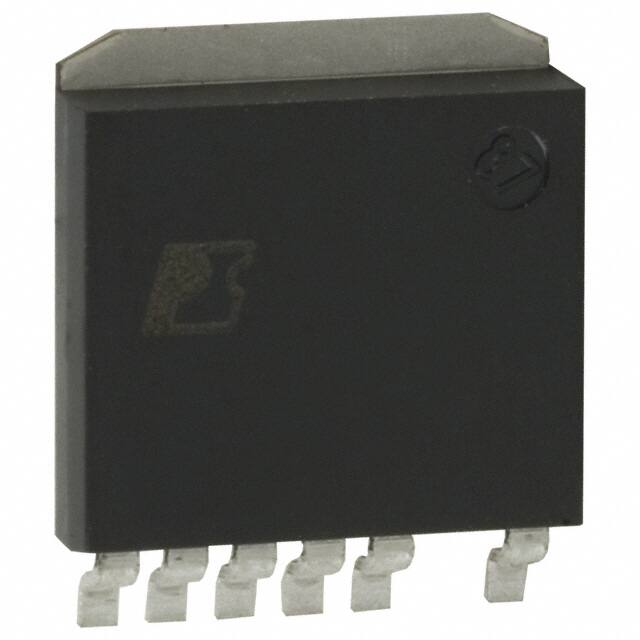

The DPA424SN-TL is supplied in an S-PAK package, specifically SPak-7 with 6 leads and a tab, suitable for surface mounting.
The switching frequency is pin selectable between 300 kHz and 400 kHz.
