| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |

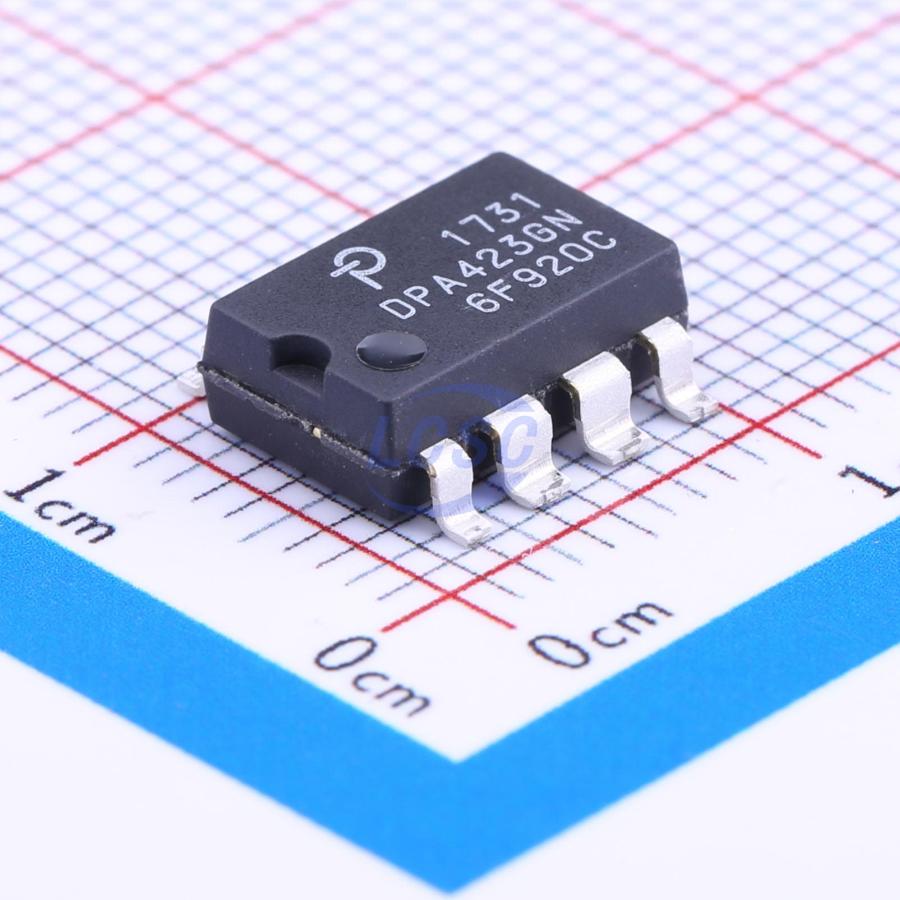

The DPA423GN from Power Integrations is part of the DPA-Switch family, offering a highly integrated solution for DC-DC conversion in Power over Ethernet (PoE) and Telecom applications. With an input voltage range of 16-75 VDC, this IC simplifies designs by integrating a high-frequency MOSFET, PWM control, and fault protection circuitry.
The device supports both forward and flyback topologies and offers pin-selectable frequencies of 300 kHz or 400 kHz. It includes features such as built-in auto-restart for overload protection, externally programmable current limit, and line undervoltage/overvoltage detection meeting ETSI standards. The DPA423GN is available in an 8-SMD, Gull Wing package, suitable for surface mounting.
This IC is designed to eliminate external components, saving space and cost. Its EcoSmart technology ensures energy efficiency with extremely low no-load consumption and cycle skipping at light loads. Applications include VoIP phones, WLAN devices, security cameras, and distributed power architectures operating on 24V or 48V buses.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DPA423GN has a wide input voltage range of 16-75 VDC.
The operating temperature range for the DPA423GN is -40°C to 125°C.
The DPA423GN is available in an 8-SMD, Gull Wing package.
The DPA423GN is designed for Power over Ethernet and Telecom applications.
The DPA423GN is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the DPA423GN is 1 Unlimited.
