| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,124 pcs
|
1124 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| ESD Protection | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The Texas Instruments DP83TG720RWRHARQ1 is an IEEE 802.3bp compliant automotive Ethernet physical layer transceiver. It provides the necessary functions to transmit and receive data over single twisted-pair cables, supporting the 1000BASE-T1 standard.
This device features an RGMII interface for communication with a MAC and supports I/O voltages of 3.3V, 2.5V, and 1.8V. It operates within a temperature range of -40°C to 125°C and comes in a 36-VQFN wettable flank package.
The DP83TG720RWRHARQ1 includes a diagnostic toolkit for monitoring and debugging, such as temperature, voltage, and ESD event monitoring. It also offers a data throughput calculator and link quality monitoring capabilities.
Designed for automotive applications, this transceiver is AEC-Q100 qualified and offers features like standby and sleep modes for power saving, as well as local and remote wake-up functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.20 | $2.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DP83TG720RWRHARQ1 is a 1000BASE-T1 automotive Ethernet PHY transceiver.
The DP83TG720RWRHARQ1 supports the RGMII MAC interface.
The DP83TG720RWRHARQ1 supports I/O voltages of 3.3V, 2.5V, and 1.8V.
The operating temperature range is -40°C to +125°C.

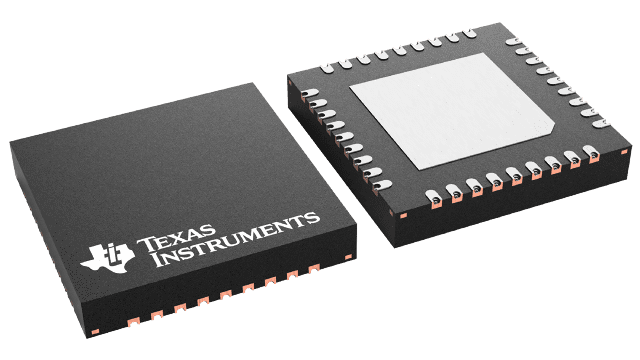

The DP83TG720RWRHARQ1 is supplied in a 36-VQFN (6x6) package.
Yes, the DP83TG720RWRHARQ1 is AEC-Q100 qualified.
