DP83TC811RWRNDTQ1 The Texas Instruments DP83TC811RWRNDTQ1 is an automotive Ethernet physical layer transceiver. It supports 100BASE-T1 and operates over a wide temperature range.
Mfr Part #:

DP83TC811RWRNDTQ1

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DP83TC811RWRNDTQ1 is an automotive Ethernet physical layer transceiver. It supports 100BASE-T1 and operates over a wide temperature range.
✓ Total Stock: 140 pcs
$ Price Range: $4.10

DP83TC811RWRNDTQ1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
140 pcs
On Request
140 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DP83TC811RWRNDTQ1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Supplier Device Package
Supplier Package
Tape & Reel
Type
Voltage
View Similar Products (0)

DP83TC811RWRNDTQ1 Description

Short technical summary and product information.

The DP83TC811RWRNDTQ1 from Texas Instruments is an automotive-grade Ethernet physical layer transceiver designed for robust in-vehicle networking. It complies with the IEEE 802.3bw 100BASE-T1 standard, ensuring interoperability with BroadR-Reach and other 100BASE-T1 PHYs. This device is AEC-Q100 qualified for automotive applications, operating reliably within a temperature range of -40°C to 125°C.



Featuring multiple MAC interfaces including MII, RMII, and RGMII, the DP83TC811RWRNDTQ1 offers flexibility in system design. It supports IEEE 1588 SFD for precise timing and provides low transmit and receive latency crucial for AVB/TSN applications. The transceiver also boasts low active power consumption, typically less than 230 mW, and configurable I/O voltage levels.

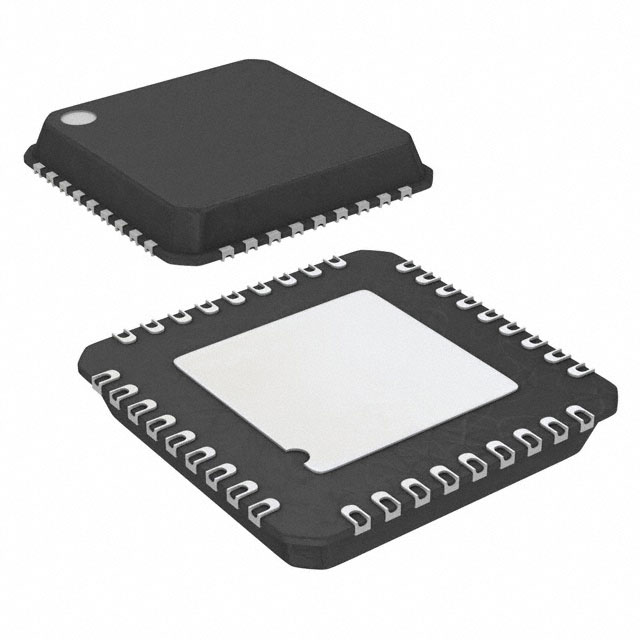

Packaged in a 36-VQFN (6x6) with wettable flank termination, this component is designed for surface mount assembly. The standard package quantity is 2000 units on tape and reel, suitable for automated manufacturing processes. Its robust design and automotive qualification make it ideal for demanding automotive Ethernet applications.

DP83TC811RWRNDTQ1 Quick Information

Product Type: Ethernet Transceiver
Series: DP83TC811-Q1
Canonical Name: DP83TC811RWRNDTQ1 Automotive Ethernet Physical Layer Transceiver
Subcategory: Automotive Ethernet Physical Layer Transceiver

DP83TC811RWRNDTQ1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DP83TC811RWRNDTQ1 Estimated Pricing

Qty Low High
1+ $4.10 $4.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

DP83TC811RWRNDTQ1 Features

  • Automotive grade 100BASE-T1 Ethernet PHY.
  • Supports MII, RMII, and RGMII MAC interfaces.
  • AEC-Q100 qualified for automotive use.
  • Wide -40°C to 125°C operating temperature.
  • Low active power consumption under 230 mW.

DP83TC811RWRNDTQ1 Applications

  • Ideal for automotive Ethernet systems.
  • Suitable for in-vehicle networking.
  • Used in infotainment systems.
  • Applicable for advanced driver assistance.
  • Supports AVB/TSN applications.

DP83TC811RWRNDTQ1 FAQs

6 frequently asked questions generated from this part’s specifications.
What type of Ethernet interface does the DP83TC811RWRNDTQ1 support?

The DP83TC811RWRNDTQ1 supports 100BASE-T1 Ethernet.

What are the MAC interfaces available on the DP83TC811RWRNDTQ1?

The DP83TC811RWRNDTQ1 offers MII, RMII, and RGMII MAC interfaces.

What is the operating temperature range for the DP83TC811RWRNDTQ1?

The DP83TC811RWRNDTQ1 operates from -40°C to 125°C.

What is the package type for the DP83TC811RWRNDTQ1?

The DP83TC811RWRNDTQ1 is supplied in a 36-VQFN Exposed Pad package.

Is the DP83TC811RWRNDTQ1 AEC-Q100 qualified?

Yes, the DP83TC811RWRNDTQ1 is AEC-Q100 qualified for automotive applications.

What is the standard package quantity for the DP83TC811RWRNDTQ1?

The standard package quantity is 2000 units on tape and reel.
