DP83867ISRGZ The Texas Instruments DP83867ISRGZ is a robust, high-immunity, gigabit Ethernet Physical Layer transceiver. It supports data rates of 10/100/1000 Mbps and features RGMII and SGMII interface options.
Mfr Part #:

DP83867ISRGZ

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DP83867ISRGZ is a robust, high-immunity, gigabit Ethernet Physical Layer transceiver. It supports data rates of 10/100/1000 Mbps and features RGMII and SGMII interface options.
✓ Total Stock: 2,340 pcs
$ Price Range: $2.14

DP83867ISRGZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,340 pcs
On Request
2340 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DP83867ISRGZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
ESD Protection
Features
Lead Style
Number of LEDs
Number of Ports
Operating Temperature
Power Consumption
SVHC Present
View Similar Products (0)

DP83867ISRGZ Description

Short technical summary and product information.

The DP83867ISRGZ from Texas Instruments is a fully featured Physical Layer transceiver designed for robust gigabit Ethernet applications. It operates across an industrial temperature range of -40°C to 85°C and supports data rates of 10/100/1000 Mbps.



Key electrical specifications include configurable I/O voltages of 1.8V, 2.5V, and 3.3V, with low power consumption rated at 457mW. The device offers extra-low latency with TX times under 90ns and RX times under 290ns, making it compliant with Time Sensitive Networking (TSN) standards. It boasts high ESD protection, exceeding 8000V IEC 61000-4-2.



This Ethernet PHY transceiver supports both RGMII and SGMII MAC interface options. Additional features include cable diagnostics, EtherCAT, EtherNet/IP, IEEE 1588 SOF, JTAG support, Profinet compatibility, Wake-on-LAN packet detection, and integrated MDI termination resistors. It meets EN55011 class B emission standards.

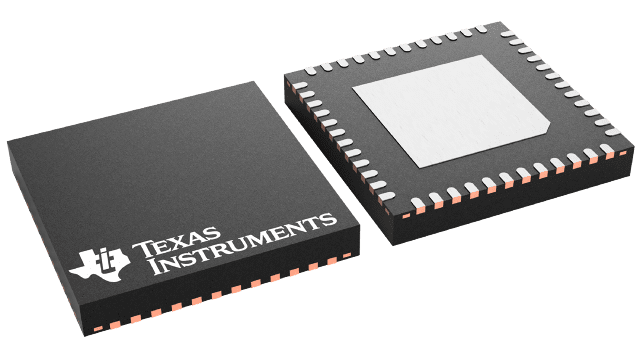

The DP83867ISRGZ is available in a compact 49 mm² VQFN (RGZ) package, suitable for space-constrained designs. Its robust design and comprehensive feature set make it ideal for industrial and automotive Ethernet applications.

DP83867ISRGZ Quick Information

Product Type: Ethernet PHY Transceiver
Series: DP83867
Canonical Name: DP83867ISRGZ Gigabit Ethernet Physical Layer Transceiver
Subcategory: Interface

DP83867ISRGZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

DP83867ISRGZ Estimated Pricing

Qty Low High
1+ $2.14 $2.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

DP83867ISRGZ Features

  • Robust gigabit Ethernet PHY transceiver.
  • Supports 10/100/1000 Mbps data rates.
  • RGMII and SGMII interface options.
  • Low latency TX < 90ns, RX < 290ns.
  • Industrial temperature range -40 to 85°C.

DP83867ISRGZ Applications

  • Industrial Ethernet applications.
  • Time Sensitive Network (TSN) systems.
  • Automotive Ethernet connectivity.
  • Factory automation networks.
  • Robust communication systems.

DP83867ISRGZ FAQs

7 frequently asked questions generated from this part’s specifications.
What data rates does the DP83867ISRGZ support?

The DP83867ISRGZ supports data rates of 10/100/1000 Mbps.

What interface types are available on the DP83867ISRGZ?

The DP83867ISRGZ features RGMII and SGMII interface types.

What is the operating temperature range for the DP83867ISRGZ?

The operating temperature range for the DP83867ISRGZ is -40 to 85 °C.

What are the typical I/O supply voltages for this device?

The typical I/O supply voltages are 1.8V, 2.5V, and 3.3V.

What is the ESD protection level for the DP83867ISRGZ?

The device exceeds 8000V IEC 61000-4-2 ESD protection and has 8 kV HBM protection.

What is the power consumption of the DP83867ISRGZ?

The low power consumption is rated at 457mW.

Is the DP83867ISRGZ compliant with Time Sensitive Networking (TSN)?

Yes, the DP83867ISRGZ is Time Sensitive Network (TSN) compliant.
