| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
977 pcs
|
977 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Number of LEDs | |
| Number of Ports | |
| Operating Temperature | |
| Protocol | |
| Supplier Device Package | |
| Technology | |
| Type | |
| Voltage |

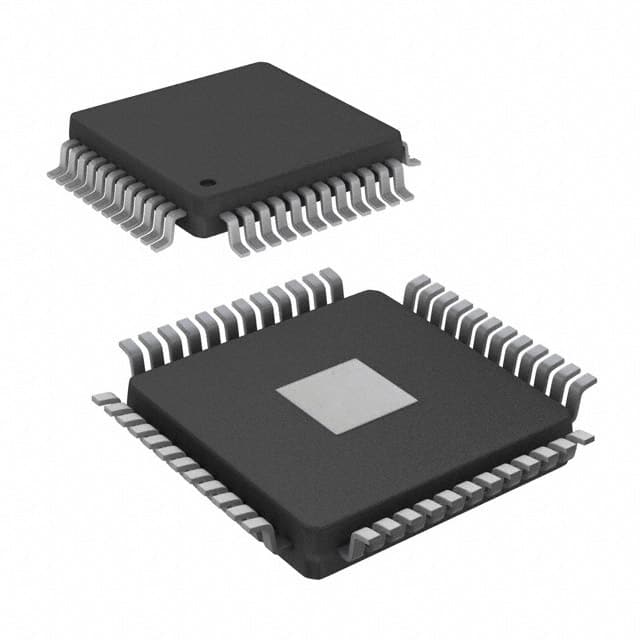

The DP83848VYB/NOPB from Texas Instruments is a high-temperature, low-power 10/100-Mbps Ethernet PHY Transceiver. It supports multiple interface types including MII, RMII, and SNI, and features IEEE 802.3 autonegotiation and parallel detection.
This transceiver operates with a supply voltage of 3.3V and has an extended operating temperature range of -40°C to 105°C. It includes features like Auto-MDIX for 10/100 Mb/s, energy detection mode, and programmable LED support for link status, activity, and duplex.
The device is housed in a 48-LQFP Exposed Pad package, suitable for surface mounting. It also supports IEEE 1149.1 JTAG and includes integrated ANSI X3.263 compliant TP-PMD physical sub-layer functions with adaptive equalization.
Key electrical characteristics include a data rate of 10/100 Mbps, a 25-MHz clock output, and low-power consumption of less than 270 mW typical. The serial management interface uses MDC and MDIO signals.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.00 | $11.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DP83848VYB/NOPB supports data rates of 10/100 Mbps.
It supports MII, RMII, and SNI interface types.
The DP83848VYB/NOPB operates in a temperature range of -40°C to 105°C.
The I/O supply voltage is typically 3.3V, with a range of 3V to 3.6V.
It is supplied in a 48-LQFP Exposed Pad package.
Yes, it supports Auto-MDIX for 10/100 Mb/s connections.
The typical low-power consumption is less than 270 mW.
