| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,318 pcs
|
2318 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,020 pcs
|
2020 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Number of LEDs | |
| Number of Pins | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Technology |
The Texas Instruments DP83848HSQ is an active Ethernet PHY transceiver designed for 10/100 Mbps data rates. It features a single port and supports both MII and RMII interface types, with RMII being configurable.
This device operates with a typical I/O supply voltage of 3.3V and is built using a low-power 0.18-µm CMOS technology. The operating temperature range is extended, from -40°C to 125°C. Key features include IEEE 802.3 autonegotiation and parallel detection. It also incorporates Auto-MDIX for 10/100 Mb/s and an Energy Detection Mode.

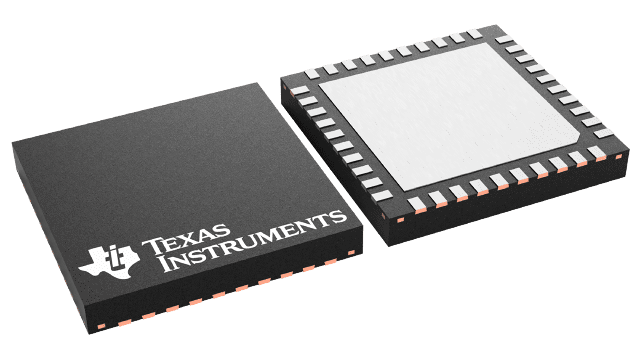

The DP83848HSQ comes in a 40-pin WQFN package with dimensions of 6 mm x 6 mm, covering an area of 36 mm². It includes a 25-MHz clock output and supports a serial management interface via MDC and MDIO. The transceiver also features packet BIST for 10/100 Mb/s operation and ESD protection rated at greater than 4 kV HBM.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DP83848HSQ supports 10/100 Mbps data rates.
It supports MII and RMII interfaces.
The operating temperature range is -40 to 125 °C.
The I/O supply voltage is 3.3 V.
It comes in a 40-pin WQFN package measuring 6 mm × 6 mm.
The ESD rating is 4 kV (HBM).
