DP83826ERHBR The Texas Instruments DP83826ERHBR is a single-port, 10/100 Mbps Ethernet PHY controller featuring MII/RMII interfaces. It operates within an industrial temperature range of -40°C to 105°C.
Mfr Part #:

DP83826ERHBR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DP83826ERHBR is a single-port, 10/100 Mbps Ethernet PHY controller featuring MII/RMII interfaces. It operates within an industrial temperature range of -40°C to 105°C.
✓ Total Stock: 4,171 pcs
$ Price Range: $1.25

DP83826ERHBR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,086 pcs
On Request
1086 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
85 pcs
On Request
85 pcs On Request 1 On Request On Request 22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DP83826ERHBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Compliance
Current
Data Rate
Features
Function
Interface
Number of Ports
Operating Temperature
Power Consumption
Protocol
Standards
Supplier Device Package
Supplier Package
Supply Voltage
Voltage
View Similar Products (0)

DP83826ERHBR Description

Short technical summary and product information.

The DP83826ERHBR from Texas Instruments is an industrial Ethernet PHY controller designed for low-cost, low-latency applications. It supports data rates of 10/100 Mbps and features both MII and RMII interfaces for flexible integration.



This device operates within a wide temperature range of -40°C to 105°C, making it suitable for demanding industrial environments. Key features include cable diagnostics, Energy Efficient Ethernet (EEE), EtherCAT, Profinet compatibility, and Wake-on-LAN (WoL) support. The controller offers deterministic latency with TX latency at 40ns and RX latency at 170ns.

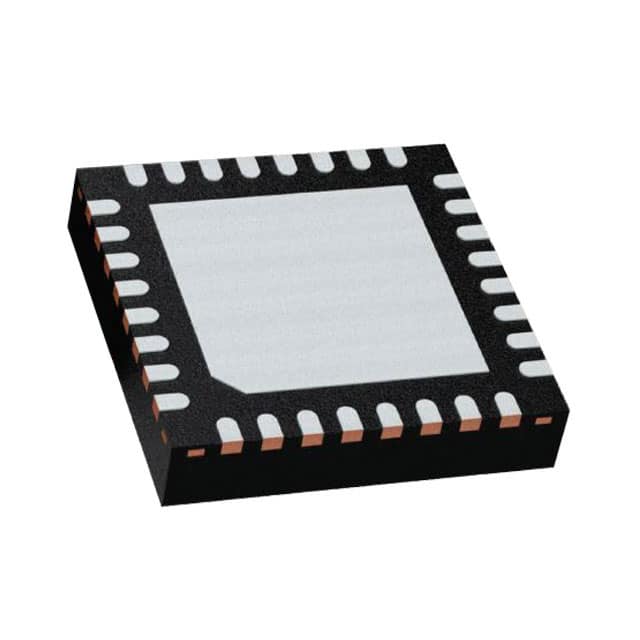

Packaged in a 32-VQFN exposed pad, the DP83826ERHBR is designed for robust system implementation with enhanced EMC performance. It supports I/O supply voltages of 1.8V or 3.3V and a single 3.3V power supply. The controller adheres to IEEE 802.3 standards for 10BASE-Te and 100BASE-TX.



This Ethernet PHY controller is ideal for various industrial networking applications requiring reliable and efficient communication. Its features like fast link-drop detection and extended cable reach contribute to its suitability for industrial automation and control systems.

DP83826ERHBR Quick Information

Product Type: Ethernet PHY Controller
Canonical Name: DP83826ERHBR Ethernet PHY Controller
Subcategory: Controllers

DP83826ERHBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DP83826ERHBR Estimated Pricing

Qty Low High
1+ $1.25 $1.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

DP83826ERHBR Features

  • Supports 10/100 Mbps Ethernet data rates.
  • Features MII and RMII interface options.
  • Operates across a wide industrial temperature range.
  • Provides low and deterministic latency.
  • Includes diagnostic and power-saving features.

DP83826ERHBR Applications

  • Ideal for industrial Ethernet applications.
  • Suitable for EtherCAT and Profinet systems.
  • Used in automation and control systems.
  • Enables reliable wired network connections.

DP83826ERHBR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the data rate of the DP83826ERHBR?

The DP83826ERHBR supports data rates of 10/100 Mbps.

What interfaces does the DP83826ERHBR support?

The DP83826ERHBR supports MII and RMII interfaces.

What is the operating temperature range for the DP83826ERHBR?

The DP83826ERHBR operates from -40°C to 105°C.

What are the TX and RX latency values for the DP83826ERHBR?

The TX latency is 40ns and the RX latency is 170ns.

What compliance standards does the DP83826ERHBR meet?

The DP83826ERHBR is compliant with IEEE 802.3 (10BASE-Te, 100BASE-TX) and EtherCAT.
