| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current Max | |
| Output Voltage | |
| Output Voltage Ripple & Noise (Typical @ VOUT = 0.7 V, Full Load, BW = 20 MHz) | |
| Output Voltage Ripple & Noise (Typical @ VOUT = 2.5 V, Full Load, BW = 20 MHz) | |
| Output Voltage Setpoint Accuracy | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Width |

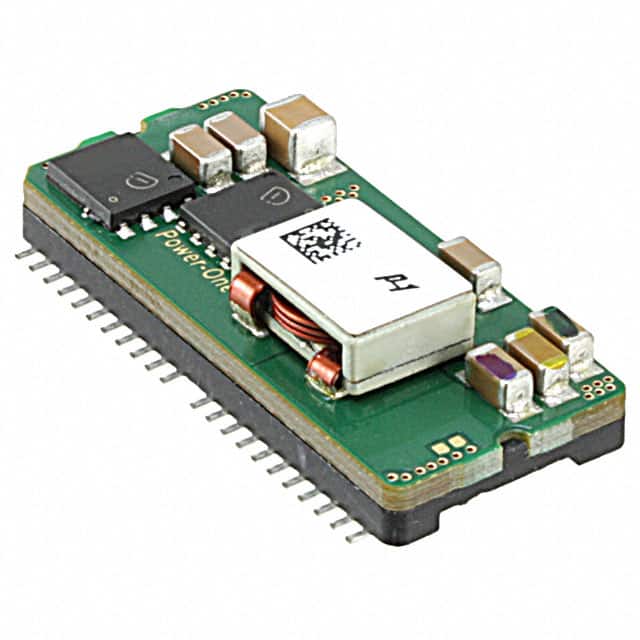

The Bel Power Solutions DP7015G-R100 is a non-isolated point-of-load (PoL) DC-DC converter featuring digital programmability and intelligent power management. It accepts an input voltage range of 8V to 14V and delivers a regulated output from 0.7V to 5.5V at up to 15A. The module integrates digital control for programmable output voltage, sequencing, tracking, fault protection, and compensation parameters via an I2C-based GUI.
Key electrical specifications include a typical output voltage setpoint accuracy of ±(0.6% + 5 mV), line and load regulation of ±0.3% of VOUT, and output ripple and noise as low as 10mV typical at 0.7V output. The switching frequency is selectable between 500kHz and 1MHz, allowing a trade-off between efficiency and ripple performance. Protection features include overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO).
The DP7015G-R100 is housed in a surface-mount module package measuring 32.0mm x 14.0mm x 8.0mm. It is designed for operation over a -40°C to +85°C temperature range. The module is RoHS3 compliant and REACH unaffected, with an MSL rating of Level 1 (unlimited).
The input voltage range is 8V to 14V.
The output voltage range is 0.7V to 5.5V, and the maximum output current is 15A.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant.
It uses a surface mount module package.
The module includes overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO) protection.
