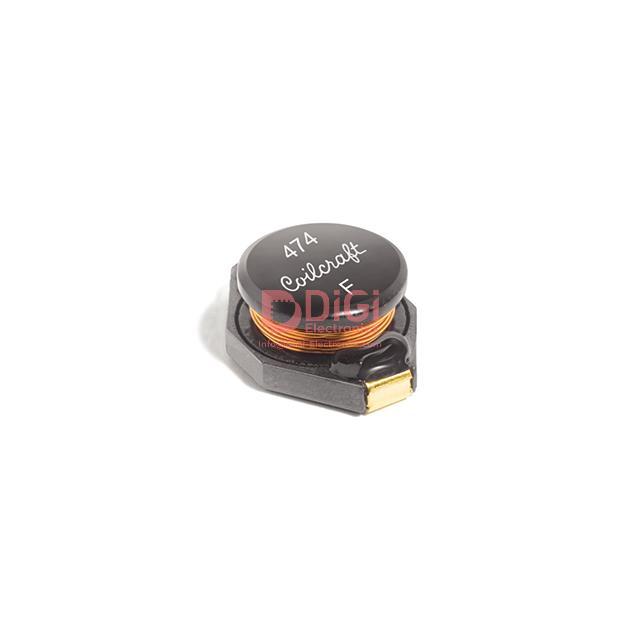

DO3316P103MLD The Coilcraft DO3316P103MLD is an unshielded drum core fixed inductor with a 10µH inductance value. It features a surface mount package and a current rating of 3.9A.
Mfr Part #:

DO3316P103MLD

Available from 4 distributors
Mfr Name: Coilcraft
Coilcraft
The Coilcraft DO3316P103MLD is an unshielded drum core fixed inductor with a 10µH inductance value. It features a surface mount package and a current rating of 3.9A.
✓ Total Stock: 5,783 pcs
$ Price Range: $0.20

DO3316P103MLD Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DO3316P103MLD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Current Rating
Current Saturation
DC Resistance
Inductance
Mounting Type
Operating Temperature
SVHC Present
Self Resonant Frequency
Shielding
Tape & Reel
Tolerance
Type
View Similar Products (0)

DO3316P103MLD Description

Short technical summary and product information.

The Coilcraft DO3316P103MLD is a fixed inductor from the DO3316 series, designed for surface mount applications. This unshielded drum core inductor offers an inductance of 10µH with a tolerance of ±20% and a maximum DC resistance of 38mOhm.



With a current rating of 3.9A and a saturation current of 3.8A, this component is suitable for various power applications. It operates within a temperature range of -40°C to 85°C and has a self-resonant frequency of 30MHz. The dimensions are 12.95mm x 9.40mm.



This inductor is packaged on tape and reel, making it compatible with automated assembly processes. Its construction utilizes a ferrite core material.

DO3316P103MLD Quick Information

Product Type: Fixed Inductor
Series: DO3316
Canonical Name: Coilcraft DO3316P103MLD Fixed Inductor
Subcategory: Fixed Inductor

DO3316P103MLD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DO3316P103MLD Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

DO3316P103MLD Features

  • 10µH inductance with ±20% tolerance.
  • Rated for 3.9A current.
  • Low 38mOhm maximum DC resistance.
  • Unshielded drum core construction.
  • Surface mountable on tape and reel.

DO3316P103MLD Applications

  • Suitable for power supply circuits.
  • Ideal for filtering applications.
  • Used in signal processing designs.
  • Component for DC-DC converters.

DO3316P103MLD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the DO3316P103MLD?

The nominal inductance is 10 µH with ±20% tolerance, measured at 100 kHz.

What is the current rating of this inductor?

The continuous current rating is 3.9 A, and the saturation current is 3.8 A.

What is the DC resistance of the DO3316P103MLD?

The maximum DC resistance is 38 mOhm.

What is the self-resonant frequency?

The self-resonant frequency is 30 MHz.

What is the package size and mounting type?

The inductor has dimensions 12.95 mm x 9.40 mm, is surface mount, and comes in a nonstandard case. It is supplied in tape and reel packaging.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What core material is used?

The core material is ferrite.
