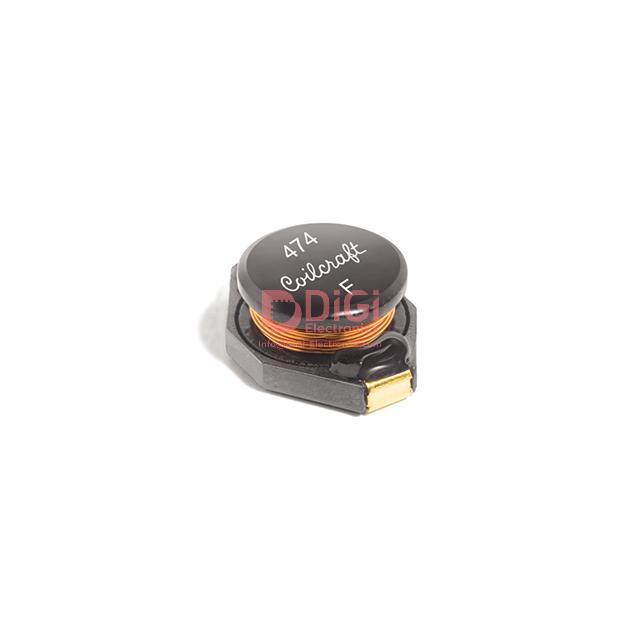

DO3316P-104MLD The Coilcraft DO3316P-104MLD is a fixed inductor with a 100µH inductance and a 1.3A current rating. It features a surface mount, unshielded drum core design.
Mfr Part #:

DO3316P-104MLD

Available from 2 distributors
Mfr Name: Coilcraft
Coilcraft
The Coilcraft DO3316P-104MLD is a fixed inductor with a 100µH inductance and a 1.3A current rating. It features a surface mount, unshielded drum core design.
✓ Total Stock: 2,015 pcs
$ Price Range: $0.19

DO3316P-104MLD Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 21+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DO3316P-104MLD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Current Rating
Current Saturation
DC Resistance
Inductance
Mounting Type
Operating Temperature
SVHC Present
Shielding
Tolerance
Type
View Similar Products (0)

DO3316P-104MLD Description

Short technical summary and product information.

The Coilcraft DO3316P-104MLD is a fixed inductor designed for various electronic applications. It offers an inductance value of 100µH with a tolerance of ±20% and a maximum DC resistance of 280mOhm.



This inductor has a current rating of 1.3A and a saturation current of 1.2A. It operates within a temperature range of -40°C to 85°C and has a self-resonant frequency of 9MHz. The component features an unshielded drum core construction made of ferrite material.



Designed for surface mounting, the DO3316P-104MLD has dimensions of 0.510" L x 0.370" W (12.95mm x 9.40mm). It is supplied in tape and reel packaging. The series designation is DO3316.

DO3316P-104MLD Quick Information

Product Type: Fixed Inductor
Series: DO3316
Canonical Name: Coilcraft DO3316P-104MLD Fixed Inductor
Subcategory: Fixed Inductors

DO3316P-104MLD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DO3316P-104MLD Estimated Pricing

Qty Low High
1+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

DO3316P-104MLD Features

  • 100µH inductance with ±20% tolerance.
  • Rated for 1.3A current with 1.2A saturation.
  • Low 280mOhm maximum DC resistance.
  • Unshielded ferrite drum core construction.
  • Surface mountable for automated assembly.

DO3316P-104MLD Applications

  • Suitable for power supply filtering.
  • Used in RF circuits.
  • Ideal for general purpose inductance needs.
  • Component in signal conditioning circuits.

DO3316P-104MLD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the DO3316P-104MLD?

The inductance is 100 µH measured at 100 kHz.

What is the current rating of this inductor?

The continuous current rating is 1.3 A, and the saturation current is 1.2 A maximum.

What is the DC resistance of the DO3316P-104MLD?

The maximum DC resistance is 280 mOhm.

What is the self-resonant frequency of this inductor?

The self-resonant frequency is 9 MHz.

What package type is the DO3316P-104MLD?

It is a surface mount drum core inductor in a nonstandard package, with dimensions 0.510" L x 0.370" W (12.95mm x 9.40mm). It is supplied in tape and reel packaging.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What core material is used in this inductor?

The core material is ferrite.
