| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
803 pcs
|
803 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Construction | |
| DC Resistance | |
| Inductance | |
| Mounting Type | |
| SVHC Present | |
| Tolerance |

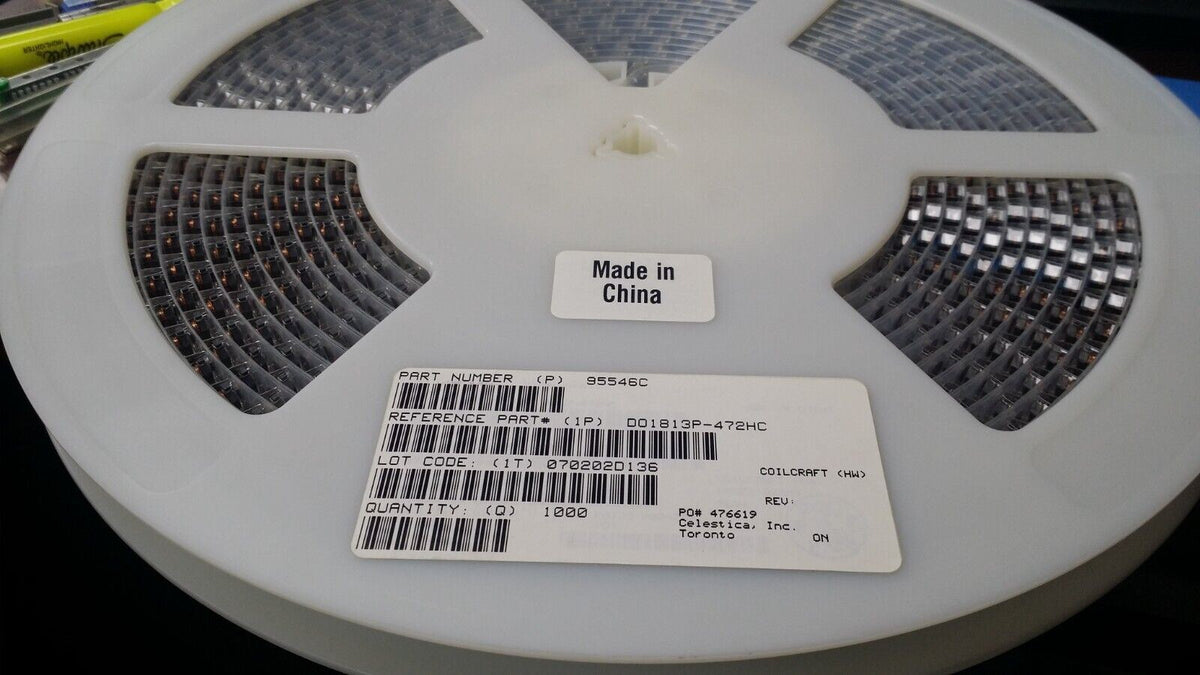

This Coilcraft DO1813P-472HC is a fixed inductor belonging to the DO1813 series. It offers a nominal inductance of 4.7µH with a tolerance of 20%. The inductor has a DC resistance of 0.054 ohm and a self-resonant frequency of 50 MHz.
Designed for power inductor applications, this component utilizes a ceramic core and is constructed with a self-leaded design. It operates within a temperature range of -55°C to 125°C. The inductor is surface mountable and comes in a 3524 case size with dimensions of 8.89 mm in length, 6.1 mm in width, and 5.0 mm in height.
The terminal finish is Tin/Lead (Sn/Pb), and the terminals are dual-ended on one surface. This inductor is not shielded. It is classified as a general-purpose inductor and has 2 terminals and 1 function.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance of the DO1813P-472HC is 4.7 µH.
The tolerance for the DO1813P-472HC inductor is 20.0 %.
The DC Resistance of the DO1813P-472HC is 0.054 ohm.
The self-resonant frequency of the DO1813P-472HC is 50.0 MHz.
The operating temperature range for the DO1813P-472HC is -55.0 Cel to 125.0 Cel.
The DO1813P-472HC uses a ceramic core material.
The package dimensions for the DO1813P-472HC are 8.89 mm in length, 6.1 mm in width, and 5.0 mm in height.
