| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Form | |
| Contact Material | |
| Contact Rating @ Voltage | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Sensitivity | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight |

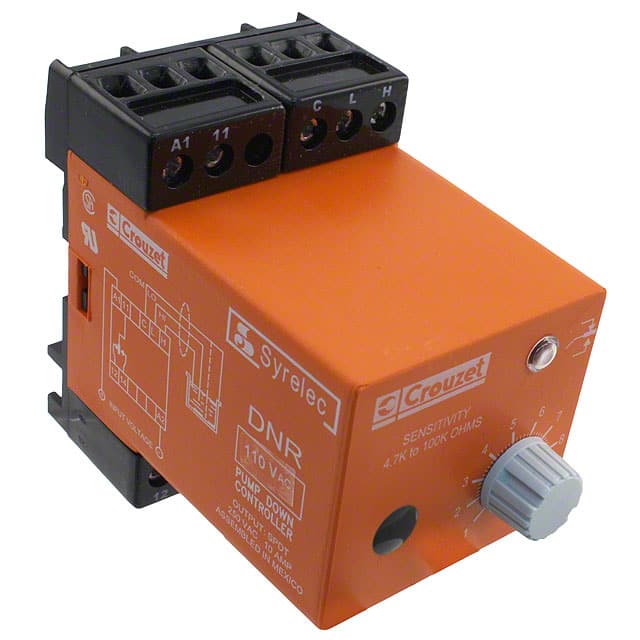

The Crouzet DNR110A is a versatile liquid level control designed for industrial applications. It operates with a 110VAC input voltage and provides an SPDT relay output, suitable for controlling pumps or valves based on liquid levels.
Key specifications include adjustable sensitivity ranging from 4.7 kΩ to 100 kΩ, allowing for customization to different fluid types and tank configurations. The unit supports one, two, or three probe operation for flexible system integration. The relay is rated for 10A at 250VAC resistive load, ensuring reliable switching.
This liquid level controller is designed for easy installation with DIN rail mounting and screw terminal connections. It operates within a temperature range of -10°C to 60°C, making it suitable for various environmental conditions. The unit also features UL listed and CSA recognized certifications.
Applications for the DNR110A include managing water levels in tanks, sumps, and other fluid containment systems. Its ability to function in pump-up or pump-down modes, selectable via switch, adds to its adaptability in automation processes.
The Crouzet DNR110A operates with a 110VAC input voltage.
The DNR110A provides an SPDT relay output.
The relay output is rated for 10A at 250VAC resistive load.
The probe sensitivity is adjustable from 4.7 kΩ to 100 kΩ.
The operating temperature range is -10°C to 60°C.
The DNR110A is designed for DIN rail mounting.
