| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| First Insertion Force (Maximum) | |
| Gender | |
| Housing Material | |
| Insulation | |
| Maximum Operating Temperature | |
| Mounting Type | |
| Overall Depth | |
| Overall Height | |
| Overall Length | |
| Overall Width | |
| Stamping Material | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Strip Length | |
| Wire Type | |
| first_withdrawal_force (Minimum/Maximum) |

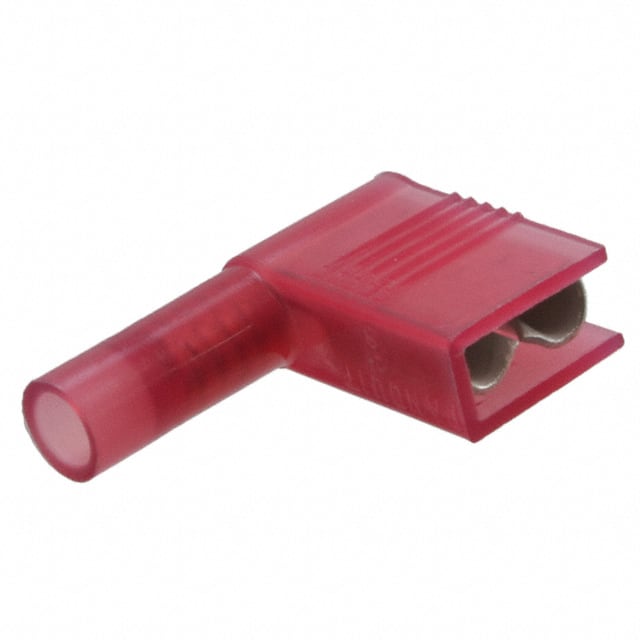

The Panduit DNFR18-250B-C is a right angle female quick disconnect terminal designed for reliable wire-to-tab connections in electrical systems. It accepts 18-22 AWG stranded copper wire and terminates with a crimp connection. The terminal features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, making it compatible with standard 0.250" male quick disconnect tabs.
The fully insulated nylon housing provides electrical insulation and strain relief, while the funnel entry wire design simplifies wire insertion during crimping. The contact is made of tin-plated brass for good conductivity and corrosion resistance. The terminal is rated for 600V maximum and 105°C maximum operating temperature.
This terminal is free hanging (in-line) with a right angle orientation, suitable for applications where space constraints require a 90-degree wire exit. The red color coding indicates the 18-22 AWG wire range. Installation tools include Panduit models CT-1525, CT-2500, and CT-2525CH.
It accepts 18-22 AWG stranded copper wire.
The tab width is 0.250" (6.35mm) and tab thickness is 0.032" (0.81mm).
The maximum voltage rating is 600V.
The maximum operating temperature is 105°C (221°F).
It uses crimp termination.
Yes, it is fully insulated with a nylon housing.
It is free hanging (in-line) with a right angle orientation.
