| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
117 pcs
|
117 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Gender | |
| Insertion & Withdrawal Force | |
| Insulation | |
| Length | |
| Material Sleeve | |
| Material: Housing | |
| Max Insulation Diameter | |
| Min Insulation Diameter | |
| Mounting Type | |
| Operating Temperature | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Strip Length | |
| Wire Type |

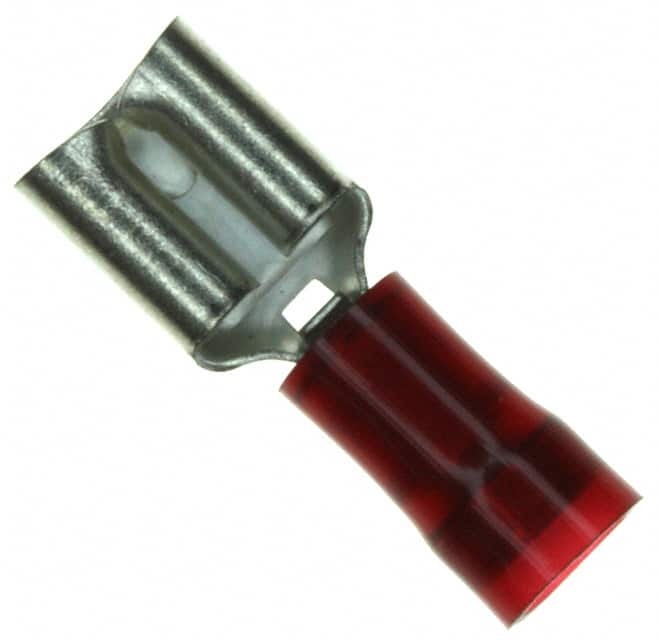

The Panduit DNF18-250-M is a female quick disconnect terminal designed for reliable wire termination in electrical and electronic applications. It accepts 18-22 AWG stranded copper wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) tab thickness. The terminal uses a crimp termination method and is insulated on the non-mating end with a red nylon housing.
This terminal is rated for a maximum voltage of 300V and an operating temperature of up to 90°C. The contact is made of brass with a tin plating, and the sleeve is also brass with tin plating. It includes a serrated termination for secure wire grip and has an insertion and withdrawal force of 6 to 12 lb. The recommended wire strip length is 7.1 mm.
The DNF18-250-M is UL listed and CSA certified. It is designed for free hanging (in-line) mounting and is suitable for use with stranded copper wire only. The maximum wire insulation diameter is 3.6 mm and the minimum is 1.0 mm.
It accepts 18-22 AWG stranded copper wire.
The tab width is 0.250" (6.35mm) and tab thickness is 0.032" (0.81mm).
It is rated for 300V maximum and an operating temperature of 90°C.
Yes, it has a nylon insulation on the non-mating end.
It uses a crimp termination.
It is UL listed and CSA certified.
The initial insertion and withdrawal force is 6 to 12 lb.
